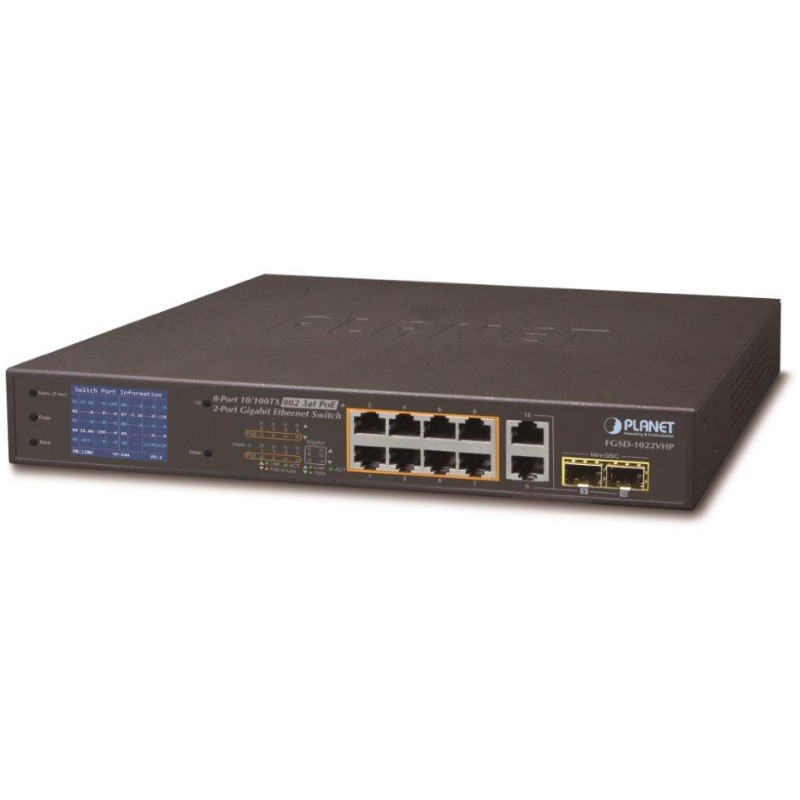

PLANET FGSD-1022VHP
2 Gigabit 1000Base-TP/SFP ports and 8 10/100Base-TX ports with the ability to power other IEEE 802.3at devices, total power 120W. Extend mode for connection at 10Mb/s up to 250 m on UTP depending on the cable used, including PoE power supply. LCD display for power information, port VLAN, ESD protection, internal AC power supply.
This is an 8-port 10/100Mbit fast Ethernet switch with 2 Gigabit TP/SFP interfaces. It allows you to power other devices such as IP cameras, VoIP phones and WiFi access points. The device has a fully permeable 5.6 Gbps fast internal backbone bus. Gigabit interfaces provide additional options for expandability, flexibility and network integration. The LCD display on the front panel informs about the current PoE utilization.
It allows you to connect and power Ethernet devices at a speed of 10Mb/s up to a distance of 250m on classic UTP cabling. 250m is a theoretical maximum depending on the quality of the cabling and connectors, in normal conditions the real distance is 150m. According to our tests, the real distance on a quality Cat 6 cable is 200 meters, on a Cat 5e cable 150 meters +- 10%.
BASIC SPECIFICATIONS
Physical properties:
Ports: 8 x RJ-45 10/100BASE-TX, 2 x RJ-45 100/100/1000BASE-T, 2 x SFP 1000BASE-X
Memory: 4k MAC addresses
Throughput: 5.6 Gbps bus, 4.16 Mpps operational (64B)
Design: rackmount 1U 19"
Power supply: internal 100-240V/50-60Hz AC power supply, total power consumption up to 130W
Protection: ESD contact up to 4kV, air up to 6kV
Operating temperature: 0 - 50°C
Dimensions: 180 x 280 x 44 mm
Weight: 1800g
POE function:
Total power output: 120 W, IEEE 802.3af, IEEE 802.3at
Number of injectors: 8 x up to 30.8 W
Power supply type: End-span
Advanced features: automatic detection of powered device
Extended mode 10Mb/s with a range of up to 250m
