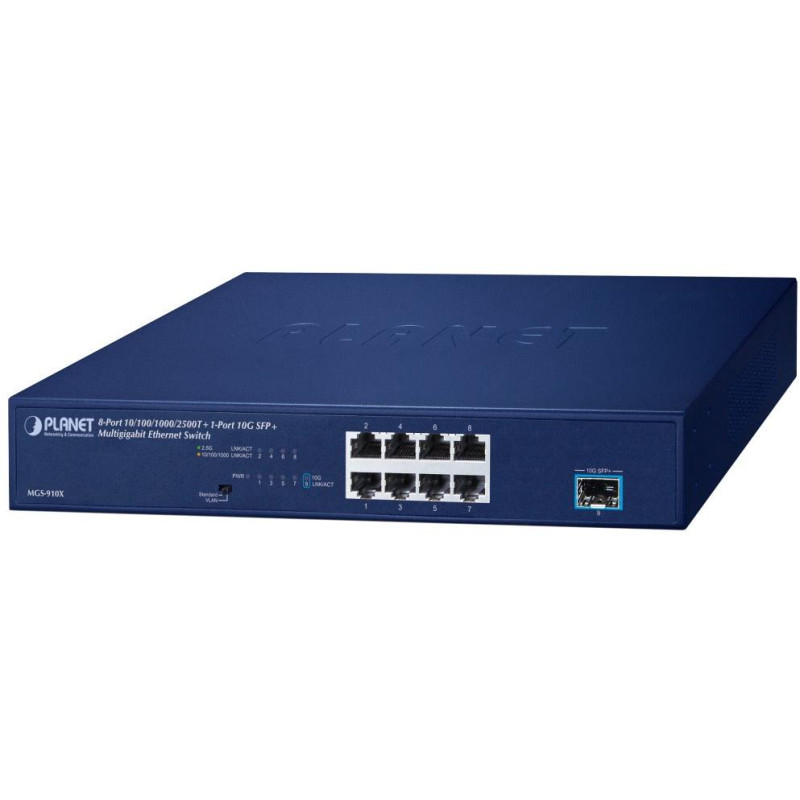

Planet switch 8x1Gb/2.5Gb + 1xSFP+ 10Gb, VLAN, fanless

PLANET MGS-910X

Unmanaged multigigabit L2 switch , 8× 10/100/1000/2500 Base-T RJ-45, 1× 10G Base-X SFP+.

LED indication of port usage, DIP switch for switching Standard/VLAN mode, fanless design, power saving mechanisms according to IEEE 802.3az.

The Switch has a manual mode switch:

•

• Standard - works like a normal switch.


• VLAN - ports are logically separated from each other, in this mode unwanted multicast and broadcast storms can be prevented.



An affordable multi-gigabit switch suitable for small businesses and offices, it can automatically identify and determine the correct transmission speed for connected devices. It uses the Store-and-Forward data forwarding method, which ensures low latency and high data integrity, eliminating unnecessary traffic and potential congestion on critical network paths. Thanks to its high data throughput, it is ideal for most gigabit environments. In addition, users can use existing Cat5e cabling and still increase the network speed to 2.5 Gbps . This allows all devices in the network environment to fully realize their benefits.

BASIC SPECIFICATIONS

Physical properties:

Ports: 8× 10/100/1000/2500 Base-T RJ-45, 1× 10G Base-X SFP+

Memory: 4k MAC addresses

Throughput: 60 Gbps bus, operational 44.64 Mpps (64B)

Transmission support: JumboFrame 12 KB

Design: 1U rack

Power supply: internal AC 100-240 V (50-60 Hz), total power consumption up to 6.6 W

Protection: surge protection up to 6 kV, ESD up to 8 kV

Operating temperature: 0 to +50 °C

Dimensions: 280 × 180 × 44 mm

Weight: 1.505 kg
