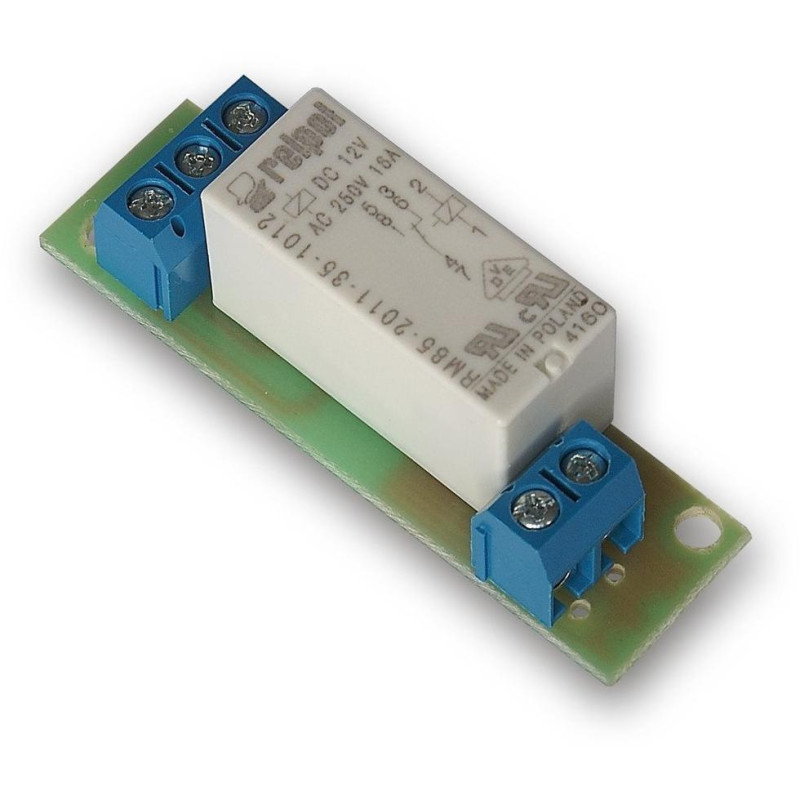

TINYCONTROL 1x relay 16A, expansion module for LAN controller LK3

Professional relay board with one relay for remote control of electrical devices.

Relay board containing one power relay designed for connection to a transistor output (OUT0 for GSM Controller v3 or OUT5 for LAN controller). Allows switching on, off or reset of connected electrical devices via remote control.

The board is equipped with a high-quality relay from the Polish company Relpol , which is characterized by high resistance to shocks. A special contact design that removes metal oxides with each switching operation extends the period of trouble-free operation and ensures reliable operation even in difficult conditions.

Areas of application
The relay board is ideal for remote control of various electrical devices in the home, industry or automation. You can use it to switch lighting, ventilation, pumps, heating systems or other appliances.

Compatibility and connectivity
The board is designed for direct connection to Tinycontrol control systems, specifically to the transistor output OUT0 for GSM Controller v3 or OUT5 for LAN controller. Thanks to standardized relay outputs (NO, C, NC), it can be easily integrated into existing electrical circuits.

Quality and reliability
The relay used by Relpol guarantees long life and reliable operation. The special contact design with automatic cleaning at each switching minimizes wear and ensures consistent performance even with frequent switching.

BASIC SPECIFICATIONS

Model: GSMKON-101

Number of relays: 1

Relay outputs: NO, C, NC

Rated load current: 16 A / 250 V AC (AC-1), 16 A / 24 V DC (DC-1)

Load type: non-inductive or low-inductive loads, resistance furnaces (AC-1/DC-1)

Coil control voltage:> 12V

Supply voltage: 9-15 V DC

Contact resistance: < 100 mΩ

Compatibility: GSM Controller v3 (output OUT0), LAN controller v2 (output OUT5)
