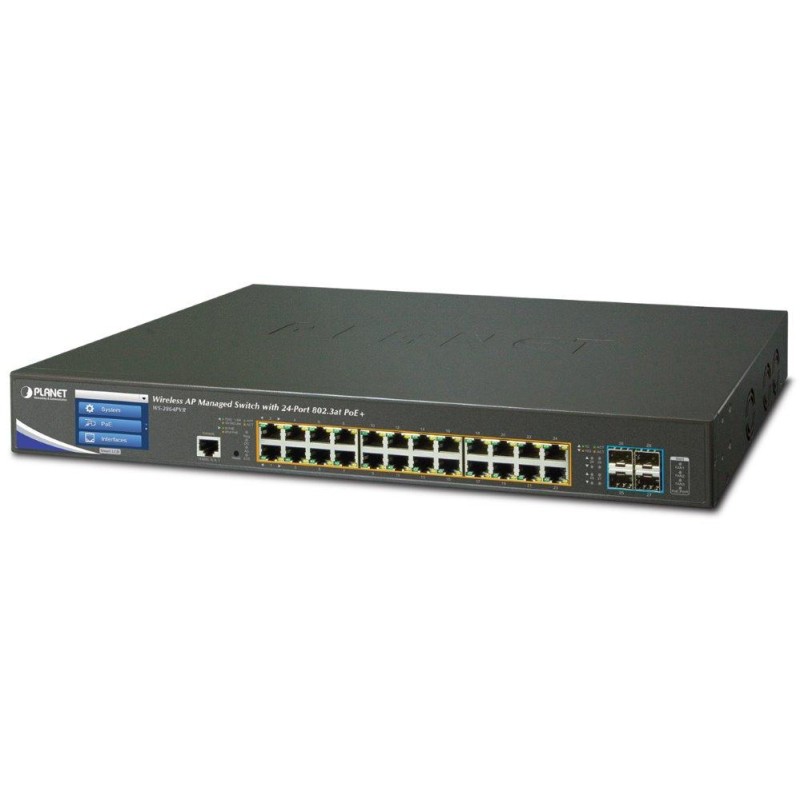

PLANET WS-2864PVR
PLANET WS-2864PVR provides centralized control and management of up to 64 access points , allowing service providers and IT managers to manage all wireless APs simultaneously. In addition, it provides IPv6/IPv4 management.
It displays real-time AP status and their heat map, allowing you to determine actual coverage and set appropriate overlap of neighboring access points to optimize wireless network performance.
It offers 24 10/100/1000BASE-T ports with up to 36W PoE+ and 4 SFP+ 10GBASE-SR/LR ports.
BASIC SPECIFICATIONS
Wi-Fi and connectivity specifications:
Wi-Fi standard and transmission support: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3z 1000BASE-SX/LX, IEEE 802.3ab 1000BASE-T, IEEE 802.3ae 10Gb/s Ethernet, IEEE 802.3x
Interfaces: 24 x RJ-45 10/100/1000BASE-T, 4 x SFP+ 10GBASE-SR/LR, 1 x RJ-45 serial port
Max. connected clients: up to 64 APs
Management: yes, web-based device management, SNMP support
AP management:
Number of managed APs: 64
Number of RADIUS clients: 64
Support Auto Discovery: yes, supports automatic AP discovery
Console: yes, comprehensive online overview of APs, activated user numbers
SSID/RF Profile: yes, create and maintain multiple wireless profiles
Cluster management: yes, AP grouping for mass provisioning and batch upgrades
L2 IAPP Roaming: no
SSID to VLAN mapping: yes, configure SSID to VLAN mapping on supported APs
RADIUS authentication: yes, client authentication in a large corporate network
Supported AP models: Manageable AP, Smart AP E series, Smart AP OE series, Smart AP OW series
Physical properties:
Memory: 16k MAC addresses, 32 Mb buffer
Throughput: 128 Gbps bus, operational 95.23 Mpps (64B)
Transmission support: JumboFrame 10 KB
Protection: ESD up to 6 kV, EFT up to 4 kV
Operating temperature: 0 to 50°C
Power supply: internal AC 100 - 240 V, 50/60Hz, power consumption up to 488 W
Dimensions: 440 x 300 x 56 mm
Design: 1.25U rack
Weight: 4675g
POE function:
Total power output: 400 W at 25°C, IEEE 802.3at
Number of injectors: 24 x up to 30.8 W
Power supply type: End-span
Advanced features:
PoE Port Status Monitoring
Overtemperature protection
