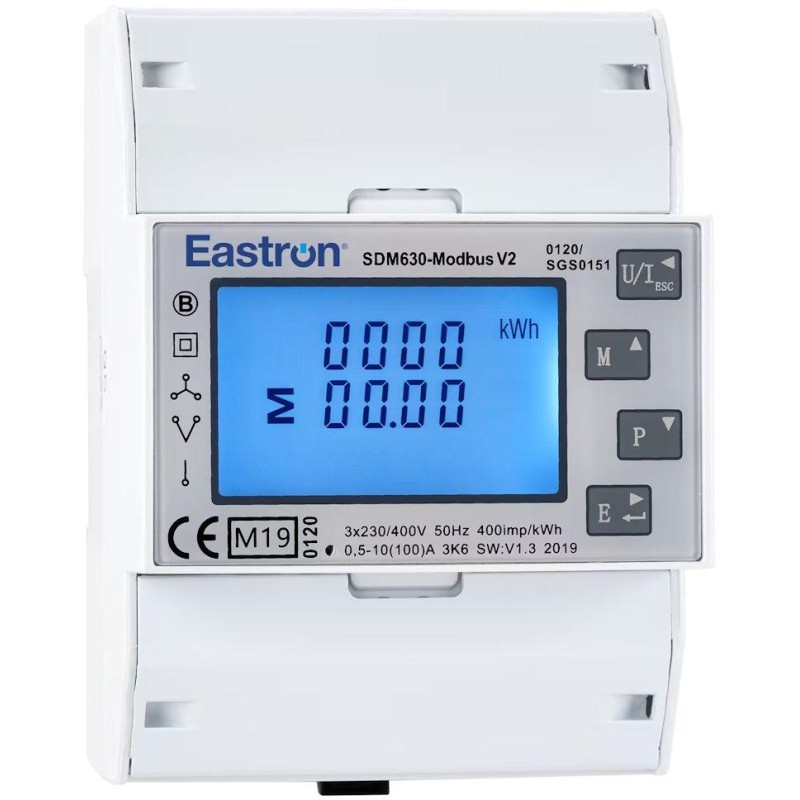

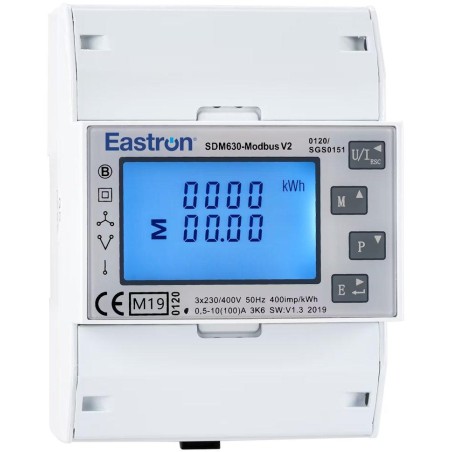

Eastron SDM630-MT-MID V2, three-phase, pulse outputs, multi-rate

Smart electricity meter for 1-phase and 3-phase measurement . The measured parameters include voltage (V), frequency (Hz), current (A), power (kW/kVA/kVAr), import, export and total energy (kWh/kVArh) . The device can also measure maximum current and power consumption. It is also equipped with pulse outputs for measuring consumed energy, which allows easy monitoring and data recording by external devices.
This device measures and displays the characteristics of single-phase two-wire (1p2w), three-phase three-wire (3p3w) and three-phase four-wire (3p4w) current in the network.

The electricity meter meets strict European standards and requirements of the Measuring Instruments Directive 2014/32/EU (MID), which guarantees its accuracy and reliability.

Key features:

Accuracy:

An RS-485 Modbus RTU communication interface is available.

BASIC SPECIFICATIONS

Rated voltage: 3× 230/400 V AC
Operating voltage range: 80–120% of rated voltage (U n )
Max. current (I max ): 100 A
Interface: RS-485 (Modbus RTU)
Mounting: DIN rail
Dimensions: 100 × 72 × 66 mm
Protection: IP51

Detailed parameters and specifications can be found in the attached manual (en).
