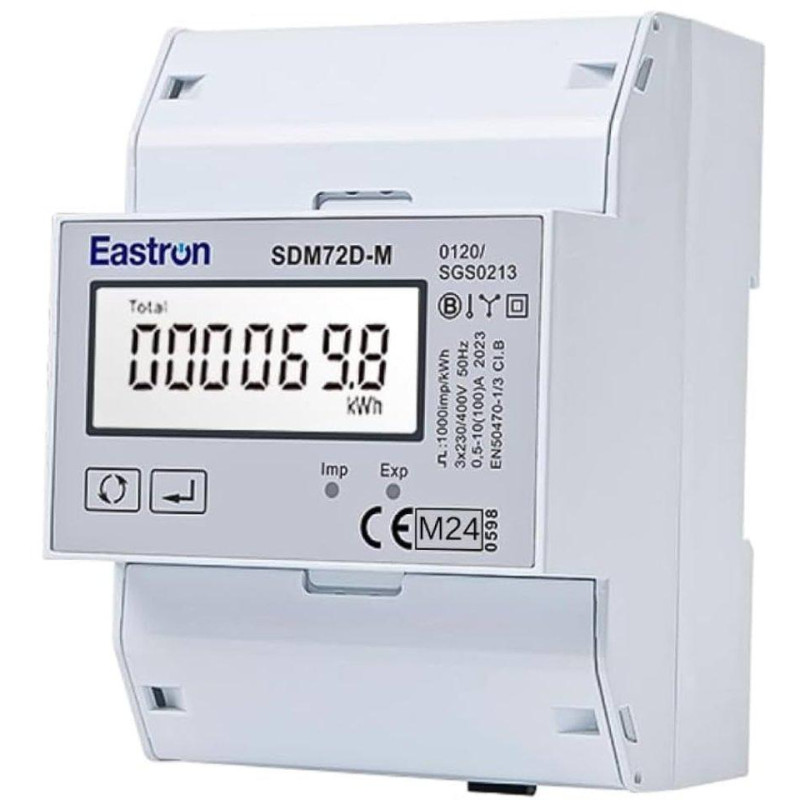

Eastron SDM72D-M-2-MID, Multifunctional electricity meter with bidirectional measurement, three-phase, 100A

Eastron SDM72D-M-2-MID

A three-phase electricity meter that, in addition to measuring active energy (kWh) and power (W), supports communication via RS-485 RTU Modbus , allowing easy integration into monitoring and control systems. This model is designed for direct measurement up to 100 A , making it ideal for applications where accurate consumption monitoring is required. The IP51 protection provides protection against dust and water, ensuring reliability in harsh conditions. In addition, it supports bidirectional measurement , meaning it can record both energy taken from the grid and energy returned to the grid.

The electricity meter meets strict European standards and requirements of the Measuring Instruments Directive 2014/32/EU (MID), which guarantees its accuracy and reliability.

Key features:

•

• Support for 2p3w and 3p4w installations

• Bidirectional measurement of electricity consumption (export/import)

• Communication via RS-485 (Modbus RTU)

• Compact design with DIN rail mounting

• Backlit LCD display for easy reading of values

• High measurement accuracy according to IEC 62053-21 and EN50470-1/3 standards

• Three-phase direct source 100 A

• MID B+D certificate

• Accuracy class 1 (active energy)

• Fixed pulse output


Displayed parameters:

•

• Import/Export and total active energy (kWh)

• Power per phase and total (W)

• Current per phase (A)

• Voltage per phase (V)


BASIC SPECIFICATIONS

Rated voltage: 3× 230/400 V AC

Operating voltage range: 80–120% of rated voltage (U _n )

Max. current (I _max ): 100 A

Interface: RS-485 (Modbus RTU)

Mounting: DIN rail

Dimensions: 100 × 72 × 66 mm

Protection: IP51
