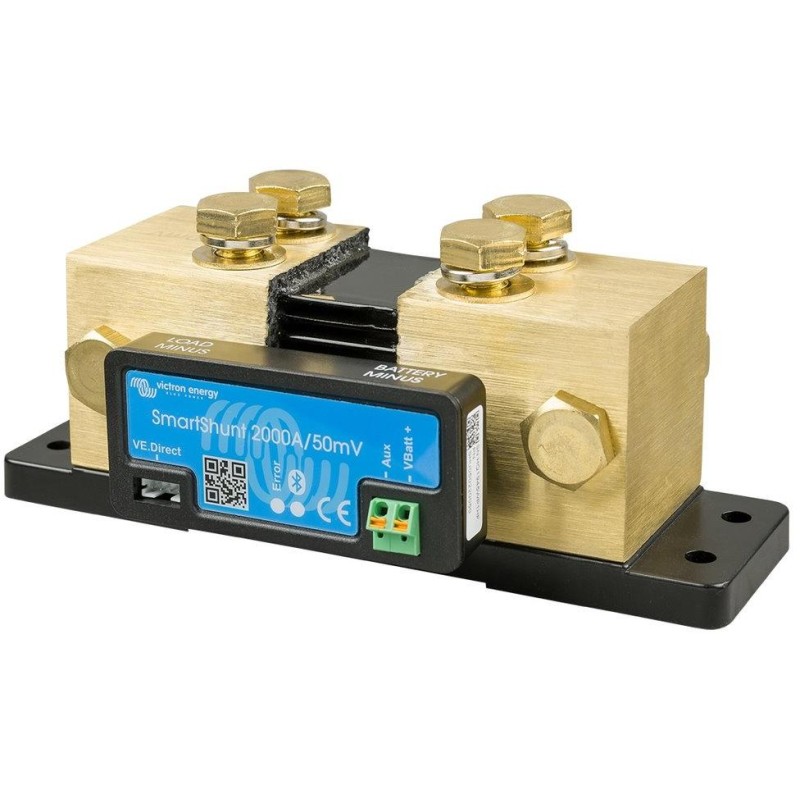

Victron Battery Monitor, Bluetooth, 2000A

Victron SmartShunt 2000 A The SmartShunt is a new model of a highly accurate battery monitoring system for up to two independent batteries without a display. Two connection cables with fuses are included. The SmartShunt is a battery monitor just like the BMV series (only without a display). Your smartphone with the VictronConnect app becomes the display. The device connects via Bluetooth to the VictronConnect app on your smartphone (or tablet) and you can conveniently read all the monitored battery parameters. Alternatively, the SmartShunt can be connected and read by a GX device. The connection to the SmartShunt is made using a VE.Direct cable. The SmartShunt is a good alternative to the BMV battery monitor, especially for systems where battery monitoring is needed, but less cabling is required and a classic display is not required. The SmartShunt is equipped with a Bluetooth interface, a VE.Direct port and a connection that can be used to monitor a second battery (midpoint monitoring or to connect a temperature sensor). BASIC SPECIFICATIONS Operating voltage: 6.5–70 V Battery capacity: 1–9999 Ah Interface: Bluetooth, VE.Direct port, 1× 2pin terminal block, 6× M10 terminal/screw Degree of protection: IP21 Dimensions: 168 × 100 × 68 mm Typical wiring diagram: Wiring diagram with GX device: Wiring diagram with starter battery measurement: Wiring diagram with temperature sensor: Wiring diagram with center voltage measurement: Detailed technical parameters can be found in the enclosed manual. Online manual: www.victronenergy.com/media/pg/SmartShunt/en/index-en.html Online manual VE.Smart Networking: www.victronenergy.com/media/pg/VE.Smart_Networking/en/index-en.html VictronConnect application: VictronConnect application for Android mobile devices VictronConnect application for iOS mobile devices VictronConnect application for Mac devices The application is also available for download on the Victron Energy manufacturer's website (Mac/Windows/Linux/iOS/Android): https://www.victronenergy.com/support-and-downloads/software#victronconnect-app
