TINYCONTROL current sensor up to 100A for LAN controller LK3 and LK4

Tinycontrol current sensor up to 100 A

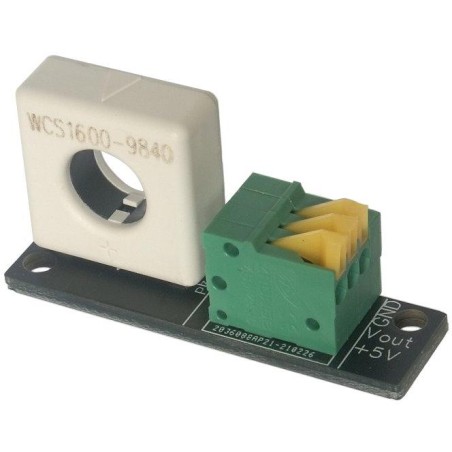

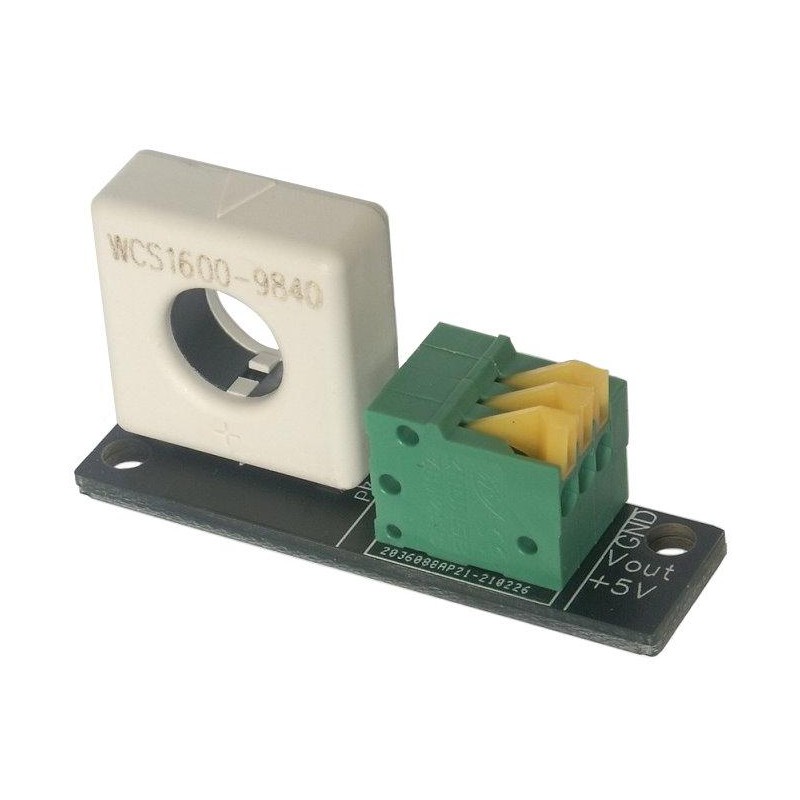

Non-invasive current sensor (WCS1600) for measuring DC current using the indirect method . It is designed for LAN controller LK3 and LK4 .

•

• The sensor should be powered by 3.3 V from the IDC10-1 connector and use the INP3-4A input, or simpler, use 5 V and measure at the INP1-2A input.

• Before use, the indications/pointers should be calibrated in the Cal! window.


TECHNICAL SPECIFICATIONS

Current range: 0-100 A

Maximum diameter of the measured conductor: 9 mm

Sensitivity: 22 mV/A

Insulation voltage: 4000 V

Supply voltage (from LAN controller): 3.3 V or 5 V
