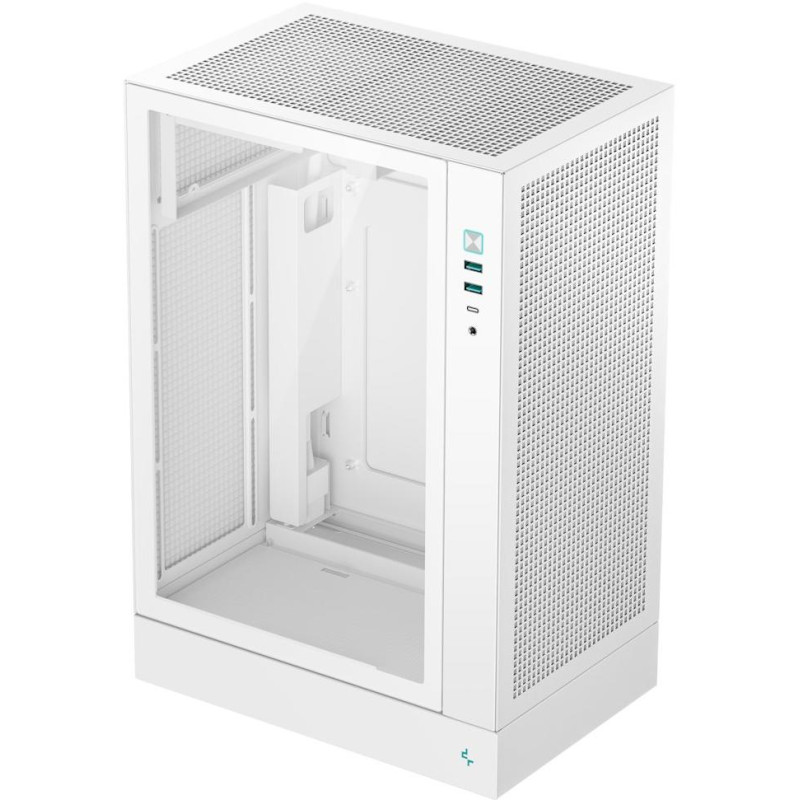

DEEPCOOL CH170 Plus case / vertical microATX / 2xUSB 3.0 / USB-C / white

Vertical mid-tower case with high airflow and compact design.

CH170 PLUS WH is a vertical computer case offering maximum flexibility when building a powerful PC. With mesh panels on multiple sides, it ensures excellent airflow for effective cooling of all components. The tempered glass side panel allows you to showcase the internal components and RGB lighting.

The case supports graphics cards up to 342 mm long (328 mm with top fan installed), 138 mm wide and 75 mm thick. It offers flexibility in power supply selection, supporting ATX, SFX and SFX-L formats up to 140 mm long.

Flexible cooling options
The CH170 PLUS WH offers a variety of cooling options including support for a 240mm radiator on the side or up to four 120mm fans distributed across the chassis. It supports CPU air coolers up to 164mm in height, allowing for the installation of most popular CPU coolers.

Easy access and connectivity
The front panel provides easy access to two USB 3.0 ports, one USB Type-C Gen2, and a hybrid audio jack. This layout puts all the important ports at your fingertips.

Practical design and maintenance
The case is equipped with dust filters on four sides, which greatly facilitates maintenance and helps keep internal components clean. The construction of high-quality materials (ABS, SPCC and tempered glass) ensures long life and durability.

BASIC SPECIFICATIONS

Dimensions: 290 × 195 × 424.5 mm

Weight: 4.4 kg

Materials: ABS, SPCC, tempered glass

Motherboard support: Mini-ITX, Micro-ATX

Front I/O ports: 2× USB 3.0, 1× USB Type-C (Gen2), 1× Audio/Mic

3.5" drive bays: 1

2.5" drive bays: 1 + 1

Expansion slots: 4

Fan support: top: 1× 120 mm/140 mm (with SFX power supply), side: 2× 120 mm, bottom: 1× 120 mm

Radiator support: side: 120/240 mm, bottom: 120 mm

Maximum CPU cooler height: 164 mm

Maximum graphics card length: 342 mm

Power supply type: ATX PS2, SFX, SFX-L (up to 140 mm)
