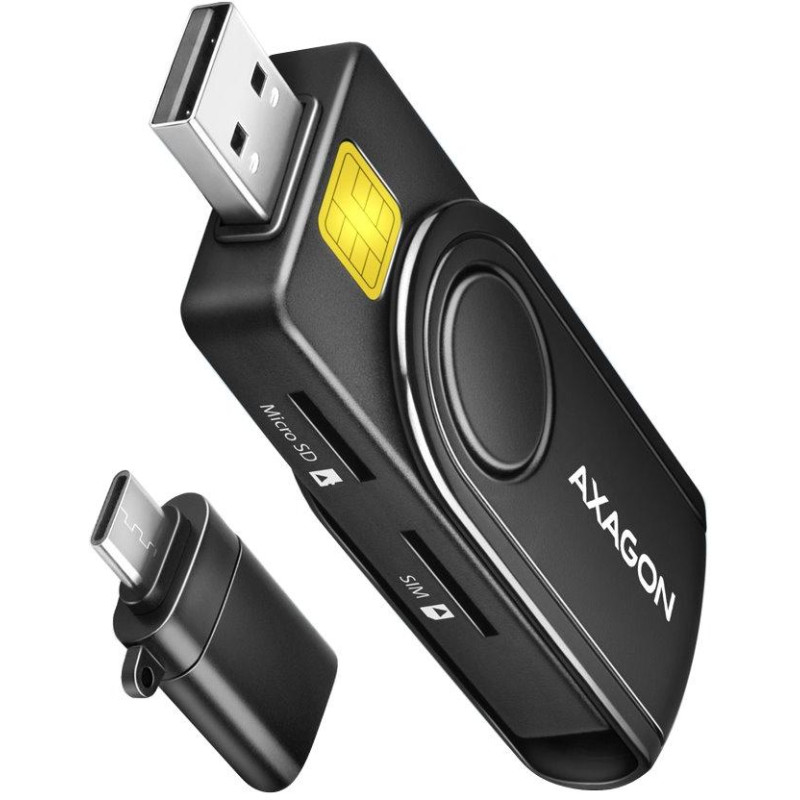

AXAGON CRE-SMP2A
The compact travel reader supports all common formats of Smart cards, chip cards and other contact cards, including bank payment cards or electronic ID cards. It is fully compatible with the eObčanka application .
Thanks to the SIM card slot including SIMedit software for SIM management and slots for SD and microSD memory cards, the reader can also be used for backup and data transfer.
The connection is made via a USB connector . A USB-C adapter is also included in the package.
BASIC SPECIFICATIONS
Interface: USB 2.0
Card support:
ATM, CAC, ID, IC, SIS
SD, SDHC, SDXC, mini SDHC, mini SD with adapter
micro SD, micro SDHC, micro SDXC, Trans Flash
MultiMedia Card, MMC 4.0, MMC Dual Voltage, MMC mobile, RS-MMC, MMC Micro
Standard size SIM cards, microSIM and nanoSIM with adapter
Supported OS:
Windows XP/ Vista/ 7/ 8/ 8.1/ 10/ 11 and later
Windows Server 2003/ 2008/ 2012/ 2016/ 2019/ 2022 and later
Mac OS X 10.x and above
Linux 2.4.x and higher
Android 8 and above
Dimensions: 80 × 30 × 15 mm
Weight: 20g
Color: black
The reader supports the following card specifications:
- contact Smart cards complying with ISO 7816, classes A, B and C (5 V, 3 V and 1.8 V)
- standard ISO 7816, EMV 4.1 (EMV 2000 level 1)
- protocols T=0 and T=1, I2C, SLE 4432/42 (S=10), SLE 4418/28 (S=9)
- PC Smart Card standard PC/SC 2.0
- Microsoft Smart Card for Windows
- I2C cards SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041
- compliant with Microsoft WHQL USB Smart Card Reader
- complies with the requirements of the FIPS 201 standard
- SD 1.0/ 1.1 (SD - Secure Digital, up to 2 GB)
- SD 2.0 (SDHC - Secure Digital High Capacity, up to 32 GB)
- SD 3.0 (SDXC - Secure Digital eXtended Capacity, up to 2 TB)
- MMC and eMMC 3.x/ 4.0/ 4.1/ 4.2
