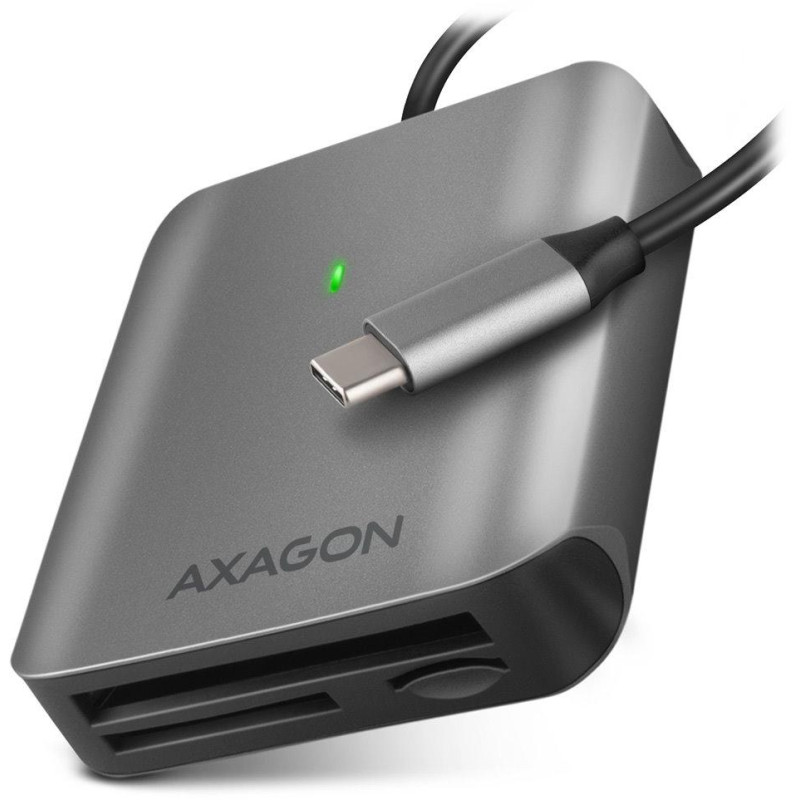

AXAGON external memory card reader microSD/SD/CF / CRE-S3C / USB-C 3.2 Gen 1 / UHS-II / aluminum body

AXAGON CRE-S3C

The compact reader in an aluminum design is equipped with three slots and supports almost all current memory cards. Of course, it is possible to work with cards in all slots simultaneously and copy directly between them. The connection is made via a USB 3.0 Type C interface.

BASIC SPECIFICATIONS

Interface: USB 3.0 Type-C

Card support:

SD, SDHC, SDXC, mini SD with adapter

microSD, microSDHC, microSDXC, TransFlash

MultiMedia Card, MMC 4.0, MMC Dual Voltage, MMC mobile, RS-MMC, MMC Micro

CompactFlash Type I

Dimensions: 64 x 60 x 15 mm

Weight: 53g

Color: gray - black

The reader supports the following card specifications:

•

• SD 1.0/ 1.1 (SD - Secure Digital, up to 2 GB)

• SD 2.0 (SDHC - Secure Digital High Capacity, up to 32 GB)

• SD 3.0 (SDXC - Secure Digital eXtended Capacity, up to 2 TB)

• SD 4.0 (SDXC - Secure Digital eXtended Capacity, up to 2 TB)

• MMC and eMMC 3.x/ 4.0/ 4.1/ 4.2/ 4.3/ 4.4/ 4.5/ 5.0 (8-bit)

• CF 6.0 (UDMA 0 - UDMA 7, up to 128PB)

• Support SD 3.01 and SD Jukebox application (CPRM function)

• Support Ultra High Speed bus UHS-I (SDR12/ SDR25/ SDR50/ DDR50/ SDR104) speed up to 104 MB/s

• Support Ultra High Speed bus UHS-II (FD156/HD312) speed up to 156 MB/s Full Duplex, or 312 MB/s Half Duplex

• Support hardware ECC (Error Correction Code) function and CRC (Cyclic Redundancy Check) function

• 3 LUNs - in file managers the reader is indicated as three disk units

• File format support FAT 12/ 16/ 32, NTFS, exFAT (FAT 64)
