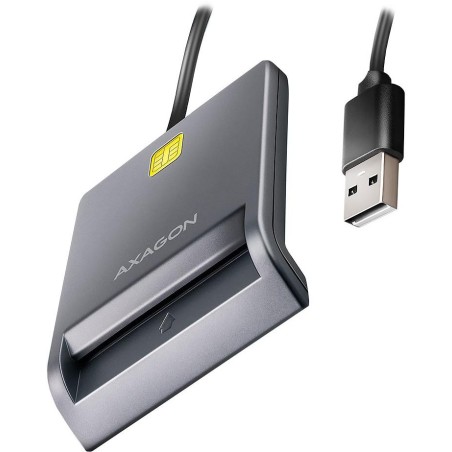

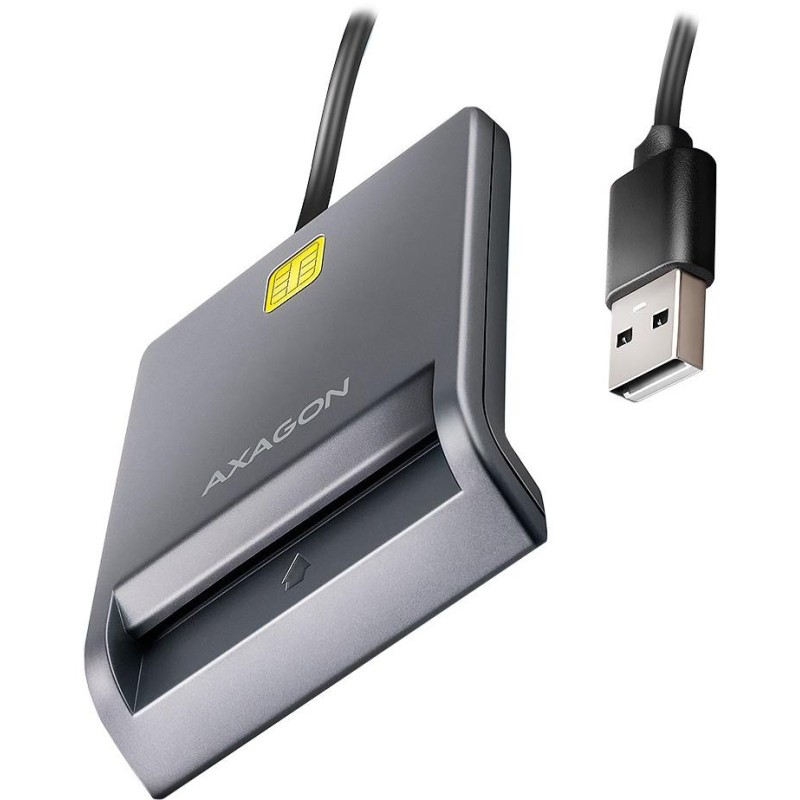

AXAGON contact smart card reader USB-A (eCitizen) / Smart Card / CRE-SM3T / USB 2.0 / 1.3m

AXAGON CRE-SM3T

The compact travel reader supports all common formats of Smart cards, chip cards and other contact cards, including bank payment cards or electronic ID cards. It is fully compatible with the eObčanka application .

The connection is made via a USB connector .

Warning :

To work with a Smart card, it is necessary to install a suitable application, such as eObčanka, on the connected device.

The reader only supports contact cards that have visible contacts on the surface. A card without contacts is an RFID type and cannot be used in the reader.

BASIC SPECIFICATIONS

Interface: USB

Card support: ATM, CAC, ID, IC, SIS

Supported OS:

Windows 11 / 10 / 8.1 / 8 / 7 / Vista / XP

Mac OS X 10.x and above

Linux 2.4.x and higher

Android 8 and above

Dimensions: 89 × 65 × 15 mm

Weight: 56g

Color: gray

The reader supports the following card specifications:

•

• contact Smart cards complying with ISO 7816, classes A, B and C (5 V, 3 V and 1.8 V)

• standard ISO 7816, EMV 4.1 (EMV 2000 level 1)

• protocols T=0 and T=1, I2C, SLE 4432/42 (S=10), SLE 4418/28 (S=9)

• PC Smart Card standard PC/SC 2.0

• Microsoft Smart Card for Windows

• I2C cards SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041

• Microsoft WHQL USB Smart Card Reader compliant

• complies with the requirements of the FIPS 201 standard
