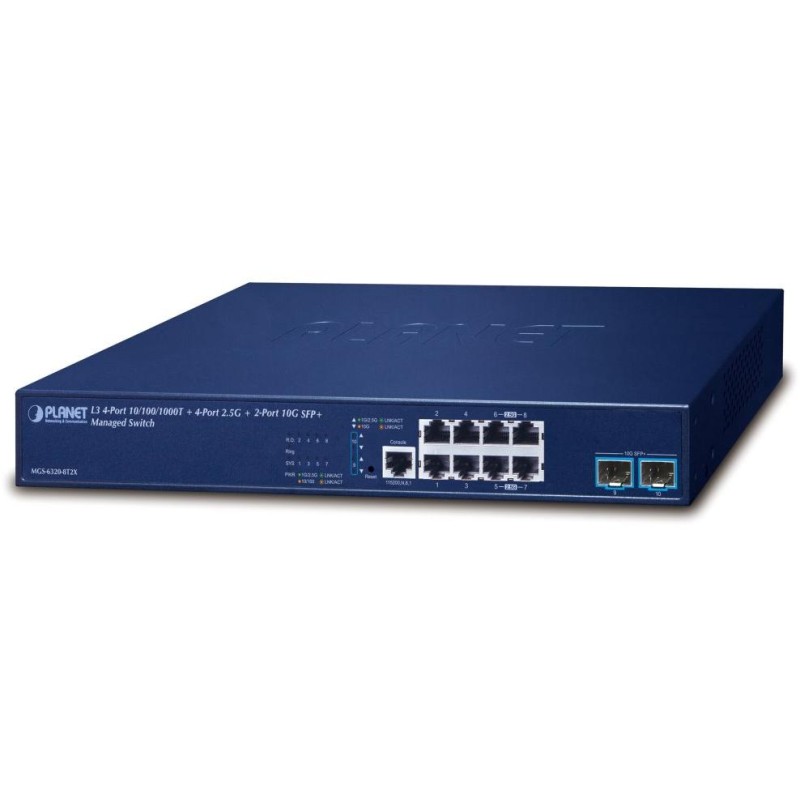

PLANET MGS-6320-8T2X
Managed multigigabit L3 switch , 4x 10/100/1000 Base-T RJ-45, 4x 10/100/1000/2500 Base-T RJ-45, 2x 10G Base-X SFP+.
Console/Telnet/Web/SNMP v1/v2/v3 management, SSH v2, TLS v1.2, VLAN 802.1Q , Spanning Tree (Rapid/Multiple), 802.3ad LACP link aggregation, QoS , DHCP Snooping, dynamic routing at L3 layer of the OSI/ISO model.
ESD surge protection, operating temperature 0 to +50 °C.
10 Gigabit managed switch operating at OSI layer 2 and 3. It is equipped with advanced features for use in wide area networks and backbone connections. Dynamic routing at L3, powerful tools for QoS traffic management and security allow ISPs and network administrators to control and effectively manage network data, part of which the switch will be equipped, for example, as a central element.
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 4x 10/100/1000 Base-T RJ-45, 4x 10/100/1000/2500 Base-T RJ-45, 2x 1G/2.5G/10G Base-X SFP+, 1x RJ-45 console serial port
Memory: 8k MAC addresses, 4.1 Mb buffer
Throughput: 68 Gbps bus, operational 50.59 Mpps (64B)
Transmission support: JumboFrame 10 KB
IP protocol version: IPv4, IPv6
Design: rackmount 1U
Power supply: internal AC 100-240 V (50/60 Hz), total power consumption up to 18.48 W
Protection: ESD up to 6 KV DC, surge protection 4 KV DC
Operating temperature: 0 to +50 °C
Dimensions: 330 x 150 x 44.5 mm
Weight: 1436g
Administration functions:
Management: console via RJ-45, Telnet, Web, SNMP SSH v2, TLS v1.2, SNMP v1/v2c/v3
Access Control: ACL based on IP/MAC/Ethertype/protocol/VLAN/DSCP/802.1p, up to 512 rules
L3 routing: max. 32 VLAN interfaces, OSPF v2, OSPF v3, RIP v2
ACL filter and bonding: IP ACL, traffic filtering by IP address
MAC ACL, traffic filtering by MAC address
QoS traffic prioritization: 8 levels, traffic prioritization by DSCP/ToS, port number, 802.1p priority or 802.1Q VLAN tag
VLAN support:
IEEE 802.1Q
Q-in-Q tunneling (802.1ad)
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
up to 4k VLAN groups, up to 4094 VLAN IDs
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Link aggregation: IEEE 802.3ad LACP, supports 4 trunk groups with 10 ports per group
Multicast: IGMP v1/v2/v3, IGMP querier mode support, MLD v1/v2, MLD querier mode
Authentication of connected devices: IEEE 802.1x, RADIUS, MAC
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes, SFP-DDM (Digital Diagnostic(IC Monitor)
