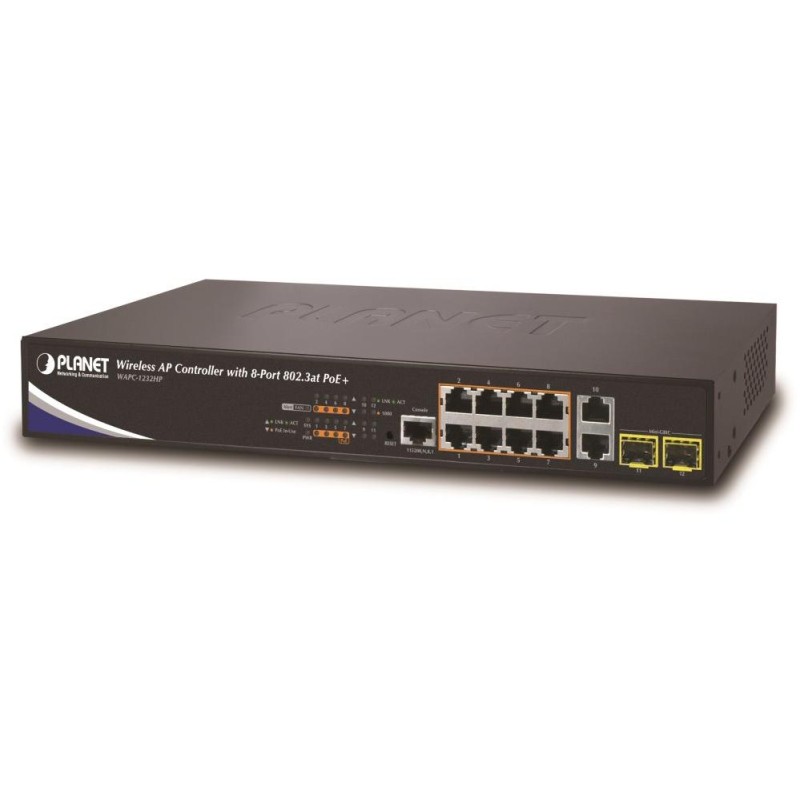

PLANET WAPC-1232HP
WLAN controller for 32 access points, 10x LAN gigabit ports (of which 8x PoE, total 240W) + 2x SFP (DDM diagnostics).
Several supported AP Planet models. Integrates the functions of a controller, PoE injector and manageable L2/L3 switch.
Web or SNMPv3 management. ESD protection, AC 230V power supply.
Controller for managing and controlling access points supported with network management capabilities and for direct powering of connected access points. It is suitable for applications in places with a large number of wireless subscribers such as hotels, apartment buildings, halls, exhibition spaces or recreational facilities.
Access point management is easy thanks to central control, you can easily change the parameters of up to 32 AP units in the network. The integrated switch with PoE injectors has advanced network traffic management functions including security functions for client authentication and data throughput such as IGMP, Spanning tree, ACL filter, 802.1X, DHCP snooping, etc.
PoE functions allow you to detect the activity of connected APs, they can be turned off/on or restarted in a planned manner.
BASIC SPECIFICATIONS
Physical properties:
Ports: 10 x RJ-45 10/100/1000BASE-T, of which 8 x PoE IEEE 803.at, 2 x SFP 1000BASE-SX/LX/BX, 1 x RS-232 (RJ-45) console serial port
Memory: 8k MAC addresses, 1392 KB buffer
Max. connected clients: up to 32 APs
Throughput: 24 Gbps bus, operational 17.76 Mpps (64B)
Transmission support: JumboFrame 9K
IP protocol version: IPv4, IPv6
Design: rackmount 1U
Power supply: 100V - 240V AC, 50/60Hz, total power consumption up to 320W
Protection: ESD up to 6kV DC
Operating temperature: 0°C - 50°C
Dimensions: 330 x 200 x 43.5 mm
Weight: 2000g
AP management:
Number of managed APs: 32
Number of AP groups: 10
Support Auto Discovery: yes, supports automatic AP discovery
Cluster management: yes, AP grouping for mass provisioning and batch upgrades
RADIUS authentication: yes, client authentication in a large corporate network
Supported AP models:
WDAP-C7200AC
WDAP-W7200AC
WNAP-C3220A
WNAP-W2201A
other models will allow communication, but it will not be possible to centrally manage them
Administration functions:
Management: Console, Telnet, Web, SNMP SSH/SSL, SNMP v1, v2c, v3
Access Control: IP and MAC based ACL protocol, 256 rules
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP/TOS in IP packet, 802.1p or 802.1Q tags
VLAN support: IEEE 802.1Q
up to 255 VLAN groups, up to 4094 VLAN IDs
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
Multicast VLAN Registration
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning protocolg Tree
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Link Aggregation: IEEE 802.3ad LACP, 5 ports in 5 groups
IGMP multicast: IGMP v1/ v2/ v3, up to 255 groups, IGMP querier mode support
DHCP Snooping: yes
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: yes
POE function:
Total power output: 240 W at 25°C, 200 W at 50°C, IEEE 802.3af, IEEE 802.3at
Number of injectors: 8 x up to 30.8 W
Power supply type: End-span
Advanced features: automatic detection of powered device
