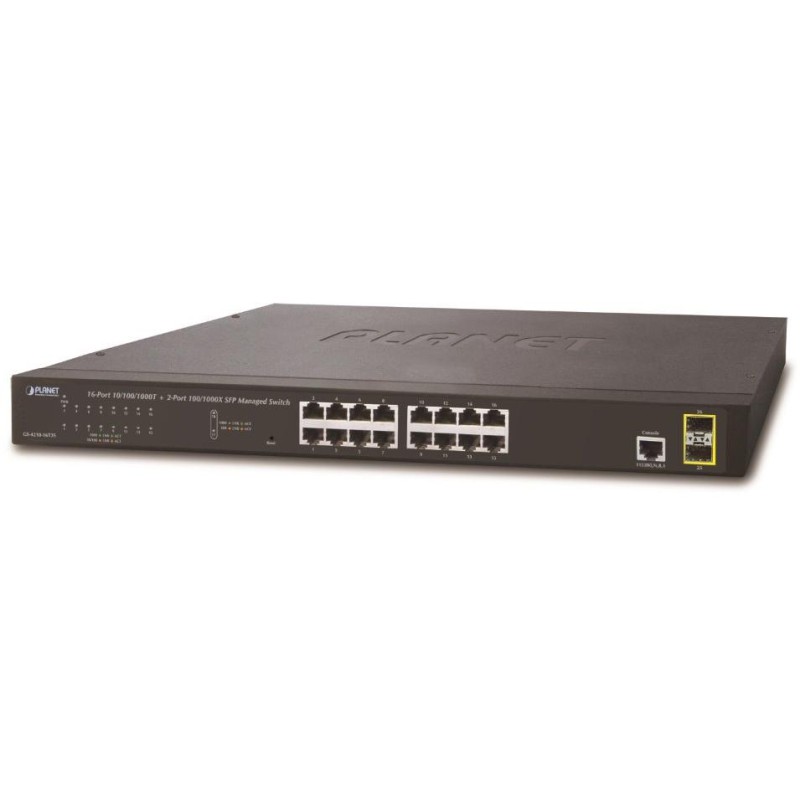

PLANET GS-4210-16T2S
Managed switch 16 ports 1000Base-T, 2x SFP ports 100/1000Base-X. Web/SNMPv3/telnet management, IPv4/IPv6 support.
VLAN 802.1Q, QoS-shaper, static LACP trunk, IGMPv3, Spannig tree. ACL+MAC filter, RADIUS/TACACS, DHCP snooping.
ESD protection. Rackmount 19"/1U. Without fans, power consumption up to 10 W.
Gigabit managed switch for installation in more demanding local networks, has a wide range of functions to ensure secure network operation by eliminating possible attacks at lower layers of the OSI model and possible authentication of end devices. End user connections can be secured with ACL/MAC rules or possible authorization to a RADIUS/TACACS server.
Secure management is ensured by encrypted web management or SNMPv3 protocol via IPv4 or, more recently, IPv6 protocol.
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 16× RJ-45 10/100/1000BASE-T, 2× SFP 100/1000BASE-SX, 1× RJ-45 serial console port
Memory: 8k MAC addresses, 4.1 MB buffer
Throughput: 36 Gbps bus, 26.7 Mpps (64B)
Transmission support: JumboFrame 9216 b
Design: rackmount 1U
Power supply: 100–240 V AC, 50/60 Hz, 0.8 A, power consumption up to 10.4 W
Protection: ESD
Operating temperature: 0–50°C, humidity up to 95%
Dimensions: 445 × 207 × 45 mm
Weight: 2000g
Administration functions:
Management: Console, Telnet, Web, SNMP v1, v2c, v3
Access Control: IP and MAC based ACL protocol, 256 rules
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: 8-level per 8 ID, traffic prioritization by port, DSCP/ToS
VLAN support: IEEE 802.1Q
up to 256 VLAN groups, up to 4094 VLAN IDs
Q-in-Q tunneling
Voice VLAN
VLAN Protocol
GVRP
VLAN management
Private VLAN Edge (PVE)
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Link aggregation: IEEE 802.3ad LACP, 8 ports in 8 groups
IGMP multicast: IGMP v1/ v2 up to 256 groups, IGMP querier mode support
DHCP Snooping: yes
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: no
/>
