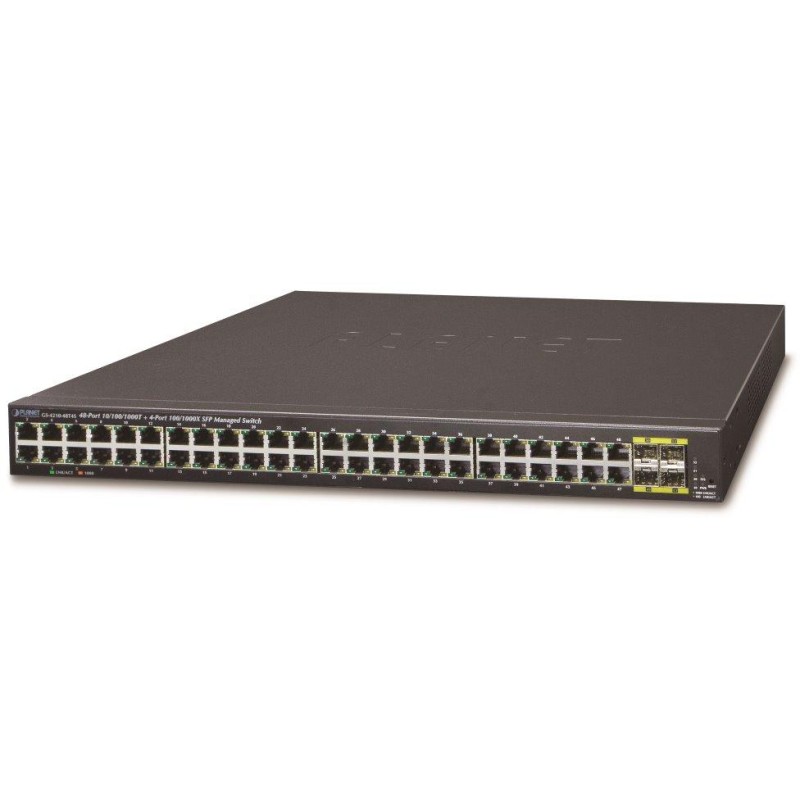

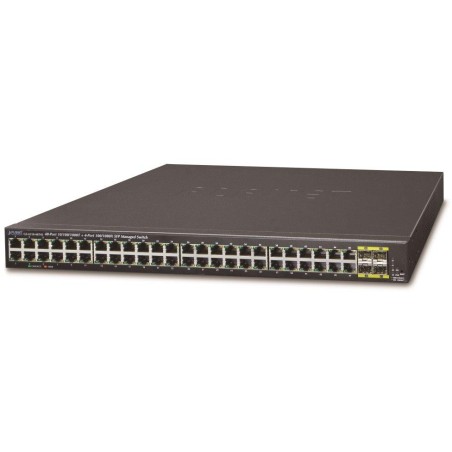

PLANET GS-4210-48T4S
Managed switch 48 ports 1000Base-T, 4x SFP ports 100/1000Base-X. Web/SNMPv3/telnet management with SSH/SSL support, IPv4/IPv6 support.
VLAN 802.1Q, QoS-shaper, static LACP trunk, IGMPv3, Spannig tree. ACL+MAC filter, RADIUS/TACACS, DHCP snooping.
ESD protection. Rackmount 19"/1U. Without fans.
Gigabit managed switch for installation in more demanding local networks, has a wide range of functions to ensure secure network operation by eliminating possible attacks at lower layers of the OSI model and possible authentication of end devices. End user connections can be secured with ACL/MAC rules or possible authorization to a RADIUS/TACACS server.
Secure management is ensured by encrypted web management or SNMPv3 protocol via IPv4 or, more recently, IPv6 protocol.
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 48 x RJ-45 10/100/1000BASE-T, 4 x SFP 100/1000BASE-X
Memory: 16k MAC addresses, 12 Mb buffer
Throughput: 104 Gbps bus, operational 77.38 Mpps (64B)
Transmission support: JumboFrame 10K
IP protocol version: IPv4, IPv6
Design: rackmount 1U
Power supply: internal power supply AC 100-240V/50-60Hz, total power consumption up to 37.9W
Protection: ESD up to 6kV
Operating temperature: 0°C - 50°C
Dimensions: 440 x 330 x 44 mm
Weight: 4000g
Administration functions:
Management: Telnet, Web, SNMP SSH/SSL, SNMP v1, v2c, v3
Access Control: IP and MAC based ACL protocol
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP in IP packet or 802.1p
VLAN support: IEEE 802.1Q
up to 256 VLAN groups, up to 4094 VLAN IDs
Q-in-Q tunneling
Voice VLAN
VLAN Protocol
Private VLAN
GVRP
VLAN management
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, RX+TX, many-to-one
Link aggregation: IEEE 802.3ad LACP, 8 ports in 8 groups
IGMP multicast: IGMP v2/ v3, up to 256 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x, RADIUS, TACACS+ authentication
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: yes
