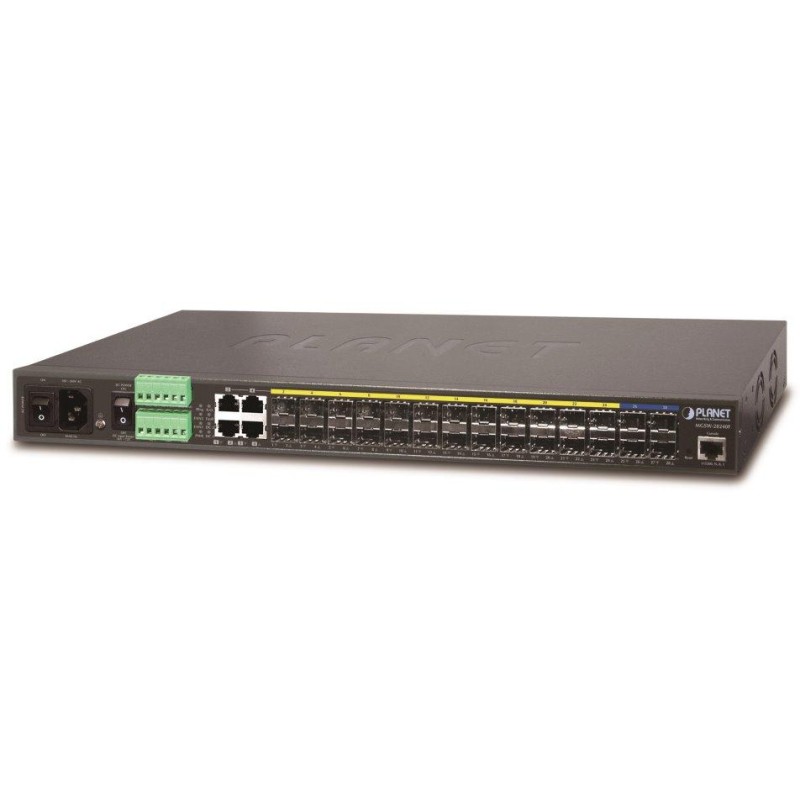

PLANET MGSW-28240F Metro
Administerable IPv4/IPv6 switch, 24x SFP 100/1000BASE-X or 100BASE-FX, 4x SFP+ 10GbBASE-SR/LR or 1000BASE-SX/LX/BX, 4x RJ-45 10/100/1000BASE-T, 2x DI+2x DO, diagnostics support DDM for SFP.
VLAN 802.1Q 255 networks, IGMPv3, QoS, LACP, STP/RSTP/MSTP, DHCP Snooping, Shaper, IP+MAC binding, 802.1x RADIUS, IP/MAC-ACL, SNMP v1/v2/v3, SSH/SSL, IPv6/IPv4 support, ERPS Ring - data transmission recovery time is less than 10 ms (ITU-T G.8032 ERPS Ethernet Ring Protection Switching).
Rackmount 19"/1U, dual AC+DC power supply.
Metropolitan SFP 10-gigabit optical switch designed for applications in wide area networks, telecommunications and for ISP or IPTV television service providers. Its physical and durable design makes it suitable for direct installation in route or end distribution cabinets. The device is operable in the temperature range of -10 to 60 °C, can be powered redundantly, has a digital I/O interface and all ports are accessible from the front panel.
The switch can be managed via IPv4 and IPv6 protocols, SNMPv3 and securely on an encrypted SSL/SSH layer. The functions include features suitable for integration in data centers or for connection and secure operation of end users, it is possible to control traffic based on QoS, filter and authorize access via ACL (Access Control List), and physically activate ports based on authentication on a RADIUS server using the IEEE 802.1x protocol.
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 24 x SFP 100/1000BASE-X or 100BASE-FX, 4 x SFP+ 10GbBASE-SR/LR or 1000BASE-SX/LX/BX, 4 x RJ-45 10/100/1000BASE-T, 2 x digital input, 1 x RJ-45 (RS-232) serial console port
Memory: 16k MAC addresses, 32 Mb buffer
Throughput: 128 Gbps bus, operational 95.2 Mpps (64B)
Transmission support: JumboFrame 10K
IP protocol version: IPv4, IPv6
Design: rackmount 1U
Power supply: internal dual power supply AC 100 - 240 V/50 - 60 Hz, DC 36 - 60 V, total power consumption up to 38.7 W
Protection: ESD up to 6 KV DC, EFT up to 6 KV DC
Operating temperature: -10°C - 60°C
Dimensions: 440 x 200 x 44.5 mm
Administration functions:
Management: console via RS232, Telnet, Web, SSHv2, SSL, TLS, SNMP v1, v2c, v3
Access Control: IP and MAC based ACL protocol, up to 256 rules
L3 static routing: 128 rules, 128 VLAN interfaces, OSPFv2
QoS traffic prioritization: 8 levels, traffic prioritization according to 802.1p, DSCP/ToS in IP packet, or 802.1Q VLAN tag
Port shaper settings in the range of 100 Kbps - 1000 Mbps
VLAN support:
IEEE 802.1Q
up to 256 VLAN groups, up to 4096 VLAN IDs
Private VLAN Edge (PVE)
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
Multicast VLAN registration
GVRP
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802 protocol.1w Rapid Spanning Tree
MSTP protocol, IEEE 802.1s Rapid Spanning Tree protocol
Port mirroring: TX, RX, TX+RX, multiple ports on one
Link aggregation: IEEE 802.3ad LACP, 16 ports in 14 groups
IGMP multicast: IGMP v1/ v2/ v3, up to 255 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x (RADIUS)
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: yes
Electromagnetic Compatibility (EMC):
ČSN EN 61000-6-4 - Emissions - Industrial environment
ČSN EN 61000-6-2 - Immunity for industrial environments
Ethernet ring topologies STP/RSTP/MSTP and ERPS
