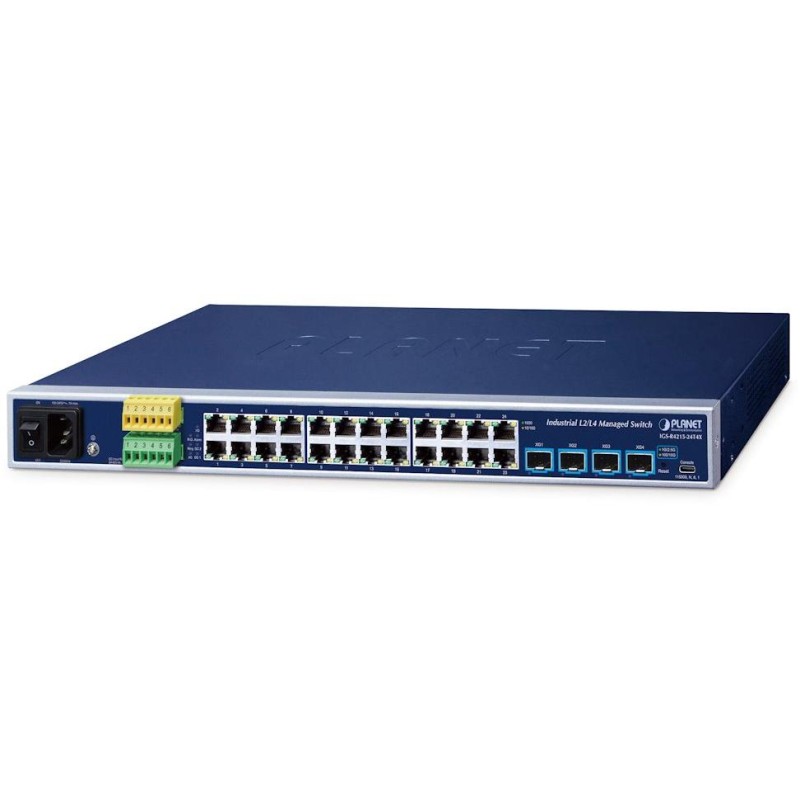

PLANET IGS-R4215-24T4X
The manageable L2/L4 switch offers 24 10/100/1000 Base-T ports and 4 10G SFP+ Base-X slots , redundant power supply, and 19" rack mountability.
Management via Web/SNMP/Telnet/RS-232 console, support SSH v2, TLS v1.2, SNMP v3 , VLAN 802.1Q, QoS, LACP, IGMP v3, Spannig tree, MAC filter, RADIUS/TACACS+, DHCP snooping and DHCP Option82, support IPv4/IPv6, ITU G.8032 ERPS Ring .
It has a wide range of functions to ensure secure network operation by eliminating possible attacks at lower layers of the OSI model and possible authentication of end devices.
Secure management is ensured by encrypted web management or SNMP v3 protocol. End user connections can be secured by ACL/MAC rules or possible authorization to a RADIUS/TACACS+ server.
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 24× 10/100/1000BASE-T, 4× 10GBASE-SR/LR SFP+, 1× USB-C console port (RS-232)
Memory: 16k MAC addresses, 12Mb buffer
Throughput: 128 Gbps bus, operational 95.23 Mpps
Transmission support: Jumbo Frame 12K
Design: rackmount 1U
Power supply: internal AC 100–240 V (50/60 Hz) or redundant DC 24-60 V, power consumption max. 24.06 W
Protection: ESD contact up to 6 KV DC, air up to 6 KV DC
Operating temperature: -10 to +60 °C (AC power supply), -40 to +75 °C (DC power supply)
Dimensions: 440 × 200 × 44.5 mm
Weight: 2.826 kg
Administration functions:
Management: console via USB-C, Telnet, Web, SNMP v1/v2c/v3, SSH v2, TLS v1.2
Access Control: IP and MAC based ACL protocol
IPv4/IPv6 based ACL protocol
MAC security - MAC address filtering, support for static MAC addresses (up to 256)
Port security for filtering source MAC address inputs
IP source guard prevents IP spoofing attacks
DoS attack prevention
QoS traffic prioritization: 8 levels, traffic prioritization by port number, 802.1p, 802.1Q VLAN tag and DSCP in IP packet
VLAN support:
IEEE 802.1Q
up to 256 VLAN groups, up to 4094 VLAN IDs
Q-in-Q tunneling (VLAN stacking)
Voice VLAN
VLAN Protocol
Private VLAN
GVRP
Spanning Tree Protocol:
protocol STP, IEEE 802.1d Spanning Tree
RSTP protocol, IEEE 802.1w Rapid Spanning Tree
protocol MSTP, IEEE 802.1s Multiple Spanning Tree
STP BPDU Guard, BPDU filtering, BPDU forwarding
Port mirroring: RX, TX, both, many-to-1 monitor, up to 4 sessions
Link aggregation: IEEE 802.3ad LACP, 8 ports in 8 groups, static trunk support
IGMP multicast: IGMP (v1/v2/v3), up to 256 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x (RADIUS), IP+MAC binding, TACACS+
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes (SFP-DDM)
