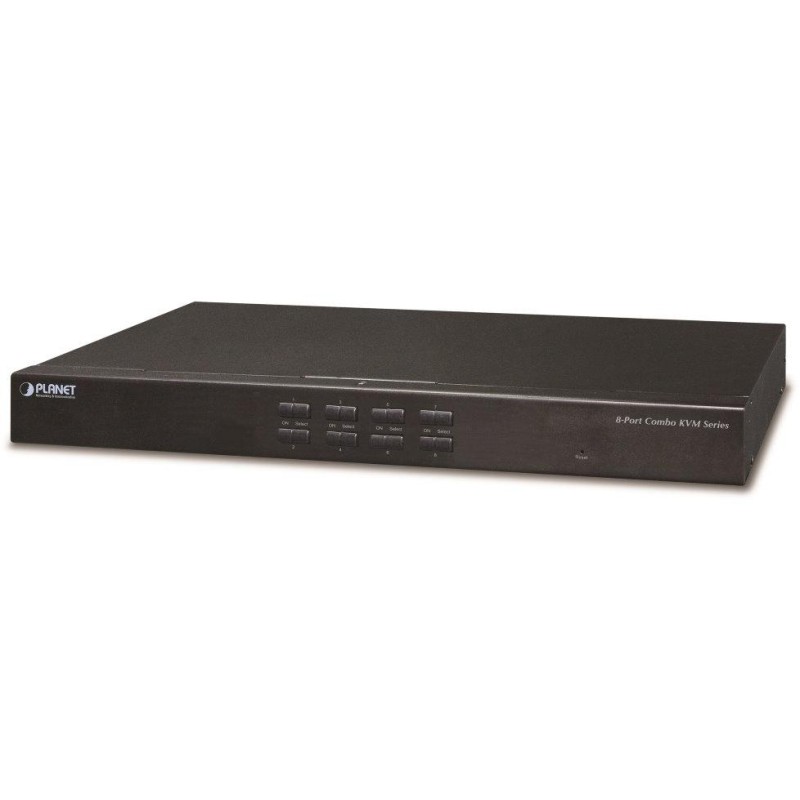

PLANET IKVM-210-08
Remote control of 8 computers via IP, remote control with a utility for Windows OS, image transmission with H.264 compression. Local interface VGA, USB, PS/2. LAN 1x 1000Base-T. PC management can only be on the Windows platform. Controlled computers are now OS-independent (Win, Linux, Mac…). By cascading with classic KVMs, it is possible to control up to 64 stations.
1 connection cable 1.8 m long in the package. Unit for remote control of several computers via the Internet or LAN network thanks to the internal possibility of hardware encoding and switching of peripheral ports such as video output, keyboard and mouse.
The image is physically transmitted from connected computers or servers, the remote control solution is absolutely independent of the installed operating systems, and access to the BIOS of the controlled machine is enabled.
The user can manage up to 8 computers, and can switch between individual inputs electronically. The device can be cascaded with other KVM (keyboard-video-mouse) switches, such as the Planet KVM-210 models, so the number of controlled computers can be directly expanded to 64 PC stations.
BASIC SPECIFICATIONS
Number of controlled computers: 8
Connection cables: 8x KVM port for connecting a 3-in-1 cable (VGA, PS/2 keyboard, PS/2 mouse). Included in the package is 1x KVM-KC1-1.8 cable.
Ports: VGA HDB 15 pin for connecting local keyboard, mouse and monitor, 2x USB (type A) ports for connecting local keyboard and mouse
Other features:
- OSD and local switching buttons
- possible cascade of up to 8 KVMs to control up to 64 PC servers/PC workstations
- connectable to classic KVMs that have hot-keys function. Allows you to control a large number of computers with a single IKVM
Mechanical properties and environment:
Dimensions: 432 x 155 x 44 mm
Weight: 2.22 kg
Software control and access:
- management using the supplied utility (Windows)
- max. resolution local 2048x1536, remote 1920x1080
- secure communication with DES, 3DES, AES traffic encryption
- setting the remote computer's mouse parameters: speed, cursor display, merging/splitting the remote and local mouse
- software keyboard for situations where the local keyboard is different from the remote one, character mapping
