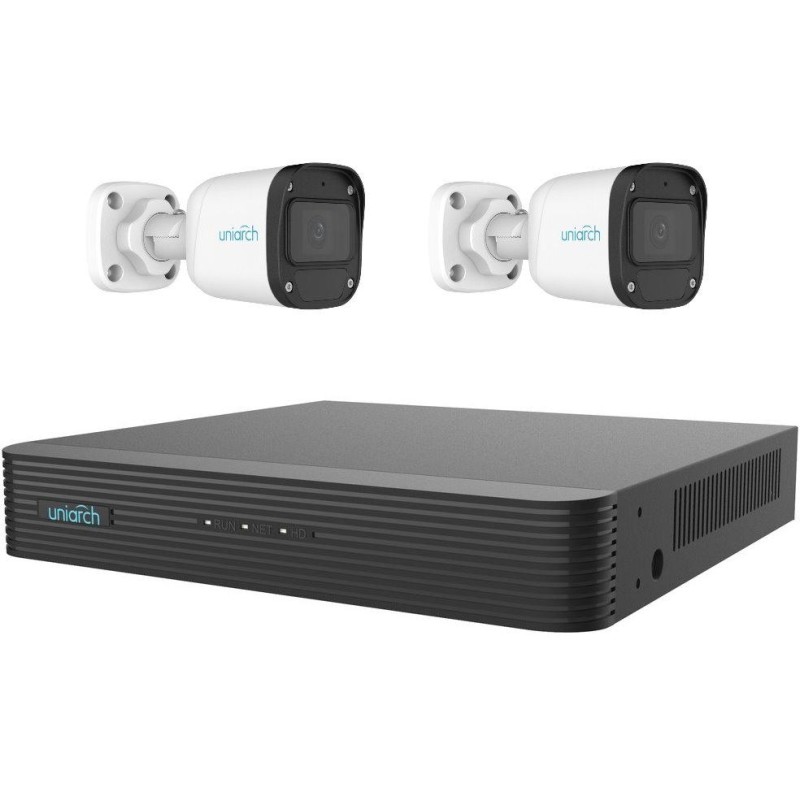

Uniarch by Uniview KIT Bullet / Camera system/ 2x IPC-B122-APF28/ 1x NVR-108E2-P8

Uniarch by Uniview KIT Bullet

Set of recording device and 2 bullet cameras (2 Mpx).

1× NVR recording device NVR-108E2-P8

Recording device for 8 IP cameras . Combinations of different resolutions up to 8 Mpx and data flow up to 50 Mb/s are allowed. The device supports the ONVIF standard (profiles S, G, T) and also Ultra 265 decoding, thanks to which you can save up to 75% of the data volume. There is one SATA slot for a hard drive up to 6 TB in size.

2× IPC-B122-APF28 camera

The 2-megapixel bullet IP camera offers a 1/2.8" CMOS sensor with progressive scan, a resolution of 1920 × 1080 pixels, a sensitivity of 0.02 lux (color, F2.1, AGC) and DWDR support. It also guarantees high-quality video during night shots thanks to IR illumination up to a distance of 30 m . The connection can be easily made using the RJ-45 port . In addition, the camera is resistant to adverse weather conditions according to IP67 certification.

•

• High-quality image with 2 Mpx resolution

• Efficient Ultra 265 compression technology

• Clear image even against strong backlight thanks to DWDR technology

• Water and dust resistance (IP67)

• IR technology with a range of up to 30 m

• Integrated microphone

• 3D DNR digital noise reduction

• ONVIF (S/T profiles), API support


BASIC SPECIFICATIONS

NVR

Number of channels: 8

Supported resolutions: 8 Mpx, 5 Mpx, 4 Mpx, 3 Mpx, 1080p, 960p, 720p, 960H, D1, 2CIF, CIF

Ports: 1× HDMI 4K output, 1× VGA Full HD output, 2× USB 2.0, 8× RJ-45 (PoE support), 1× RJ-45 (10/100 Mbps), 1× audio output (RCA)

HDD: 1× SATA (max. 6 TB/disk)

PoE support: yes, 802.3af/at (max. 75W)

Dimensions: 260 × 243 × 46 mm

Weight: ≤ 1.2kg

Camera

Sensor chip: 1/2.8" CMOS, progressive scan

Day/Night: yes

Integrated IR illuminator: yes, up to 30 m

Lens: f = 2.8 mm, fixed, angle of view horizontal 106.7°, vertical 57.1°, diagonal 115.7°

Maximum resolution: 1920 × 1080 at 25 fps

Interface: 1× RJ-45

Memory card slot: no

Dimensions: 144 × 65 × 60 mm

Weight: 170g
Power supply: DC 12 V or PoE (power supply not included)
