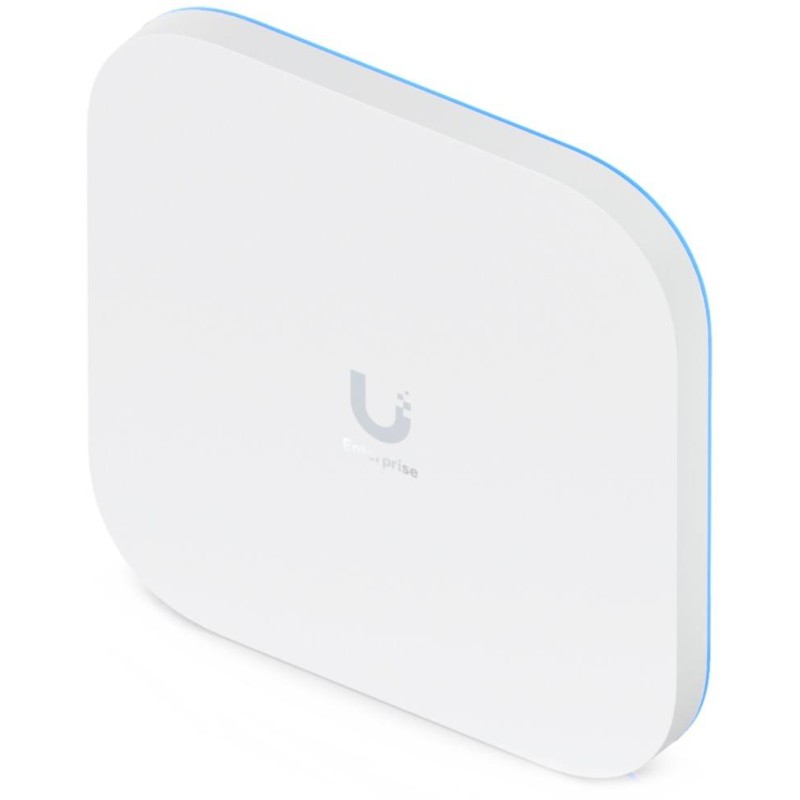

Ubiquiti UniFi E7 - Wi-Fi 7 AP, 2.4/5/6GHz, up to 20.8 Gbps, 1x 10GbE, 1x GbE, PoE++ (without PoE injector)

Ubiquiti UniFi E7

The Ubiquiti UniFi E7 is a high-end access point designed for enterprise environments , providing excellent performance and reliability.

A powerful 3-band Wi-Fi 7 access point with support for 2.4/5/6 GHz frequency bands and transfer speeds of up to 20.8 Gbps (aggregate throughput). It is ideal for high-density client environments and for corporate and commercial use.

UniFi E7 is a well-designed indoor hotspot solution using the 802.11be (Wi-Fi 7) standard and is equipped with a DL/UL MU-MIMO 4×4 antenna system with a channel width of up to 320 MHz for high-capacity connections (uplink/downlink). The AP stands out with its higher gain of 5 dBi (2.4 GHz), 6 dBi (5 GHz) and 6 dBi (6 GHz) antennas, which improves two-way communication between remote clients and the AP. The access point supports active PoE++ power supply .

Key features:

•

• Wi-Fi 7 support – The latest Wi-Fi standard with higher speed, capacity, and efficiency.

• 6GHz band – Allows for lower latency, higher throughput, and less interference compared to traditional bands.

• 10 spatial streams – Provides robust transmission capacity for demanding enterprise environments.

• 10GbE PoE port – Supports high-speed connectivity with Power over Ethernet capability.

• Redundant GbE port – For high availability and uninterrupted operation.

• Support for up to 1000 clients – Stable connections for a large number of devices in demanding environments.

• Coverage up to 185 ^m2 – for reliable Wi-Fi throughout your home or office

• High-performance antennas – Optimized for maximum range and signal stability.

• Mesh technology – Possibility of easily expanding coverage by connecting multiple units.

• Dense network architecture – Ideal for environments with a large number of connected devices.

• Automatic Channel Optimization – Dynamically adjusts channels for best network performance.

• Real-time spectral analysis – Monitors surrounding Wi-Fi signals and minimizes interference.

• Seamless integration with the UniFi ecosystem – Full support for the UniFi Network Controller.

• Advanced Security – Supports WPA3 and other security standards.

• Multiple SSID Support – Ability to create and manage multiple separate networks within a single AP.

• Elegant and durable design – Minimalist look with a construction suitable for ceiling and wall mounting.


Management using the UniFi Network app version 8.6.9 and higher

The package does not include a PoE injector!

Configuration and management of UniFi devices is done in the UniFi Network application, which is pre-installed on the UniFi device.i OS consoles (UniFi Dream Machine, Dream Router, Dream Wall, Express, Cloud Gateway Ultra, etc.) or in the freely available UniFi Network Server software, designed for installation on your own computer or server (Windows, MacOS, Linux). The UniFi Network Server software is constantly being improved, so we recommend always using the current version, which you can download from the Ubiquiti website in the Download section. You can also learn more about this product at the Ubiquiti training .

BASIC SPECIFICATIONS

Standard: 802.11a/b/g/n/ac/ax/be

Antenna: integrated 3-band antenna

Operating frequency: 2.4 GHz, 5 GHz, 6 GHz

Data transfer rate: 688 Mbps (2.4 GHz), 8600 Mbps (5 GHz), 11,500 Mbps (6 GHz)

PoE Support: Yes, PoE++, DC 42.5-57V

Ports : 1x 10GbE RJ-45, 1x GbE RJ-45

Dimensions: 250 × 250 × 43.5 mm

Weight: 1.8 kg

Manual (assembly instructions):

dl.ui.com/qig/e7
