Ubiquiti UniFi E7 Campus - Wi-Fi 7 AP, 2.4/5GHz, up to 9.3 Gbps, 1x 10GbE, 1x GbE, outdoor, PoE++ (without PoE injector)

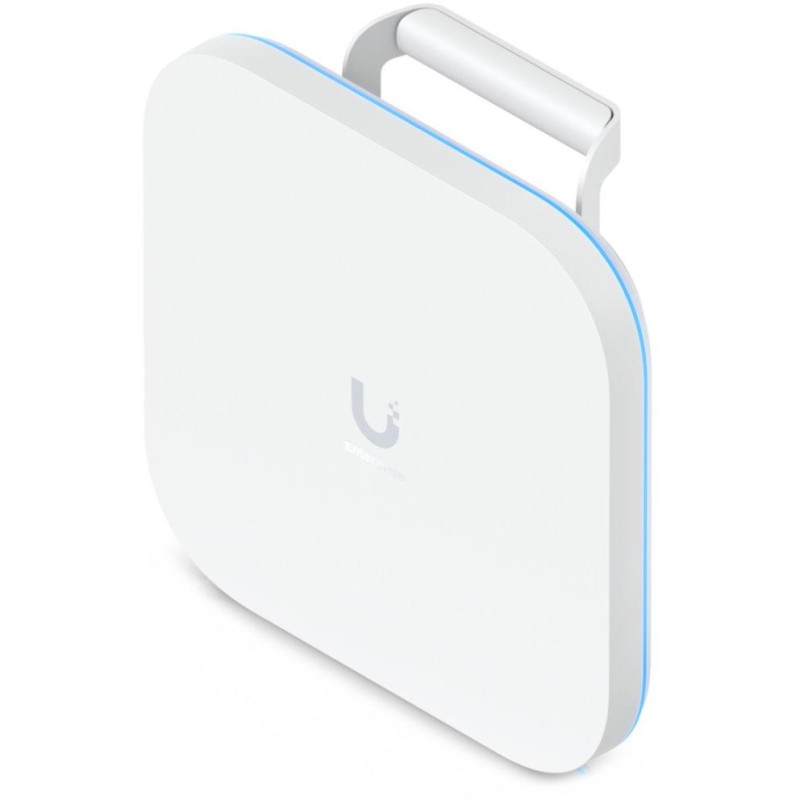

Ubiquiti UniFi E7 Campus

The Ubiquiti UniFi E7 Campus is a high-end access point designed for outdoor and harsh environments .

A powerful dual-band Wi-Fi 7 access point with support for 2.4/5 GHz frequency bands and transfer speeds of up to 9.3 Gbps (aggregate throughput). It is ideal for high-density client environments and for corporate and commercial use.

The UniFi E7 Campus is a rugged outdoor hotspot solution using the 802.11be (Wi-Fi 7) standard and features integrated directional antennas and PRISM technology, which actively filters unwanted RF interference and improves wireless connection quality. Its universal articulating mount allows for precise installation on a wall, pole, or ceiling. The access point is dust and water resistant to IPX6 (IP67 when using the included waterproof kit) and supports active PoE++ power supply .

Key features:

•

• Wi-Fi 7 support – The latest Wi-Fi standard with higher speed, capacity, and efficiency.

• 10 spatial streams – Provides robust transmission capacity for demanding enterprise environments.

• 10GbE PoE port – Supports high-speed connectivity with Power over Ethernet capability.

• Redundant GbE port – For high availability and uninterrupted operation.

• Support for up to 1000 clients – Stable connections for a large number of devices in demanding environments.

• Coverage up to 465 ^m2 – Wide signal range for large areas.

• PRISM Technology – Advanced interference filtering for a more stable and high-quality connection.

• High-performance antennas – Optimized for maximum range and signal stability.

• Mesh technology – Possibility of easily expanding coverage by connecting multiple units.

• Dense network architecture – Ideal for environments with a large number of connected devices.

• Automatic Channel Optimization – Dynamically adjusts channels for best network performance.

• Real-time spectral analysis – Monitors surrounding Wi-Fi signals and minimizes interference.

• Advanced Security – Supports WPA3 and other security standards.

• Multiple SSID Support – Ability to create and manage multiple separate networks within a single AP.

• UniFi Network Controller – Full compatibility with the UniFi ecosystem for easy management and monitoring.

• Elegant and durable design – Minimalist appearance with a construction suitable for pole and wall mounting.


Management using the UniFi Network app version 9.0.114 and higher

The package does not include a PoE injector!

Configuration and management of UniFi devices is done in the UniFi Network application, which is pre-installed on UniFi OS consoles (UniFi Dream Machine, Dream Router, Dream Wall, Express, Cloud Gateway Ultra, etc.) or in the freely available UniFi Network Server software, designed for installation on your own computer or server (Windows, MacOS, Linux). The UniFi Network Server software is constantly being improved, so we recommend always using the current version, which you can download from the Ubiquiti website in the Download section. You can also learn more about this product at the Ubiquiti training .

BASIC SPECIFICATIONS

Standard: 802.11a/b/g/n/ac/ax/be

Antenna: integrated 2-band antenna

Operating frequency: 2.4 GHz, 5 GHz

Data transfer rate: 688 Mbps (2.4 GHz), 8600 Mbps (5 GHz)

PoE Support: Yes, PoE++, DC 42.5-57V

Ports : 1x 10GbE RJ-45, 1x GbE RJ-45

Dimensions: 250 × 250 × 43.5 mm

Weight: 2.2 kg

Manual (assembly instructions):

dl.ui.com/qig/e7-campus
