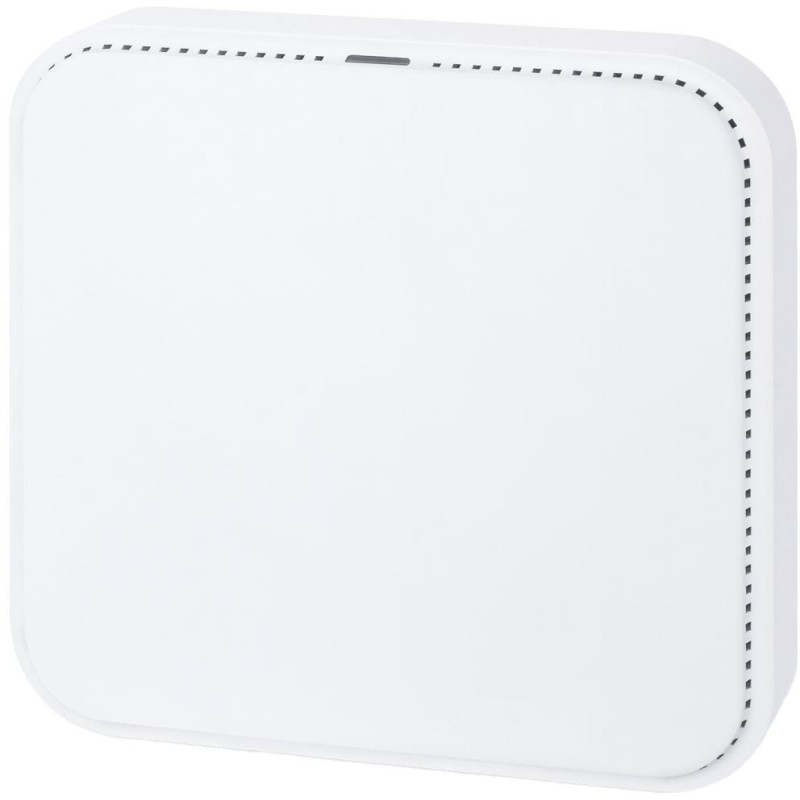

PLANET WDAP-C3000AX
Dual-band Wi-Fi 6 access point with support for central management via NMS controller for high-speed business solutions. It operates at a frequency of 2.4 GHz and 5 GHz of the 802.11a/b/g/n/ac/ax standard and therefore offers speeds of up to 3000 Mbps . Four integrated antennas with a gain of 4 dBi are sufficient for complete coverage of office and other spaces. It also supports OFDMA, MU-MIMO, Beamforming and BSS Coloring technologies. A great advantage is the ability to create a Mesh network by connecting up to 9 access points in one branch. Advanced security thanks to encrypted data transmission according to WPA/WPA2/WPA3 protocols effectively prevents eavesdropping by unauthorized users. The unit is powered via PoE+ 802.3at or via a DC 12 V network adapter, power consumption up to 15 W.
Key features:
- Compatible with IEEE 802.11a/b/g/n/ac/ax wireless technology
- 802.11ax 2T2R architecture with transfer rates up to 3000 Mbps (600 Mbps on 2.4 GHz and 2400 Mbps on 5 GHz)
- PoE+ 802.3at power supply + DC 12 V (jack 5.5 × 2.1 mm)
- High output power with multiple adjustable transmission power control
- Multiple operating modes: AP, Gateway and Repeater
- Support for OFDMA, MU-MIMO, Beamforming and BSS Coloring functions
- WMM (Wi-Fi multimedia) gives higher priority to multimedia transmitted over a wireless network
- Terminal roaming support with 802.11k, 802.11va and 802.11r
- WPA3 encryption support
- Support for Mesh networks (Open Mesh protocol)
- Max. number of devices in one group: 1× Master + 8× Nodes = total 9× APs on one branch (in one section)
- 802.1Q port VLAN, IP/port/MAC/URL filtering, DoS, SPI firewall, DMZ, port forwarding
- Bandwidth control by IP address to increase network stability
- PLANET controller support
- PLANET DDNS/Easy DDNS, Captive Portal, RADIUS Server/Client
- PLANET Smart Discovery Utility, NMS and CloudViewer for management
Mesh network for seamless roaming and better coverage
The WDAP-C3000AX supports Mesh technology, which increases Wi-Fi coverage and stability. It allows multiple devices to work together seamlessly on a single network without experiencing signal delays or dropped connections. Mesh technology supports multiple frequency bands, fast roaming, and intelligent management for optimal performance. With easy setup and automatic configuration, users can enjoy extended coverage and reliable Wi-Fi throughout their home or office.
Unlike the traditional star or tree network structure, in which only neighboring nodes can communicate with each other, all nodes in a Mesh network can communicate with each other and automatically find the best route for packet transmission. In this way, a network environment with full coverage and efficient performance is created.
Possible monitoring withCloudViewer mobile application.
You can find more information in this article:
support/186/1974" target="_blank" rel="noreferrer noopener"> Planet Technology and Devices for Modern Wireless Networks Wi-Fi 6 (IEEE 802.11ax)
BASIC SPECIFICATIONS
Features:
Wi-Fi standard and transmission support: IEEE 802.11a/b/g/n/ac/ax with speeds up to 3000 Mbps
Ports: 2x RJ-45 10/100/1000 Base-T (1x LAN, 1x WAN/PoE)
Antenna: integrated, 4× 4 dBi (2× 2.4 GHz, 2× 5 GHz)
Operating frequency: 2.4 GHz and 5 GHz
Security: WPA3 Personal, WPA2/WPA3 Personal, WPA2 Personal (AES), WPA2 Personal (TKIP), WPA2 Personal (TKIP+AES), WPA/WPA2 Personal (AES), WPA/WPA2 Personal (TKIP), WPA/WPA2 Personal (TKIP+AES), WPA2 Enterprise, WPA/WPA2 Enterprise
Wireless modes: access point, gateway, repeater
Transmission speed: 3000 Mbps
Transmitting power: FCC: up to 22 ± 1 dBm, ETSI: up to 19 dBm (EIRP)
Power supply: PoE+ 802.3at (48 V/ 0.5 A) or DC 12 V (1.5 A) external adapter (not included), power consumption up to 15 W
Dimensions: 168 × 168 × 32 mm
Weight: 380g
Detailed specifications:
Radio bands: 2.4GHz FCC: 2412–2462 MHz
ETSI: 2412–2472 MHz
5GHz: FCC: 5180-5240 MHz, 5745-5825 MHz
ETSI: 5180–5700 MHz
Wi-Fi standard: IEEE 802.11a/b/g/n/ac/ax, 802.11i, 802.11k, 802.11v, 802.11r
LAN standard: IEEE 802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T, 802.3x flow control
Multiple SSIDs: yes, max. 8
VLAN support: yes, IEEE 802.1Q, SSID per VLAN up to 4 SSIDs
Maximum number of clients: 256 (200 recommended, depending on usage)
ACL (access control list) and MAC filters: filtering by MAC address, IP and port + URL filter, DoS, SPI firewall, DMZ support and port forwarding
Internal diagnostics (PING): no
The devices are supplied in accordance with the operating conditions of technologies in the Czech Republic in the 5 GHz band and are subject to General Authorization No. VO-R/12/09.2010-12 and the Telecommunications Act.
The device is equipped with automatic regulation, which the user can turn off. The user can also change the frequency profile settings. The user can do this via a special URL in the device's web interface (hw_domain_reg.htm). Typically, this involves changing the list of available frequencies according to the ETSI and FCC standards.
However, this does not relieve the user of the obligation to set the device to comply with VO-R:
5.2 GHz band: 5150-5250 MHz with automatic regulation: max 200 mW (23 dBm) without regulation: max 100 mW (20 dBm);
5.3 GHz band: 5250-5350 MHz with automatic regulation: max 200 mW (23 dBm) without regulation: max 100 mW (20 dBm);
5.4 GHz band: 5450-5725 MHz with automatic regulation: max 1 W (30 dBm) without regulation: max 500 mW (27 dBm);
5.8 GHz band: 5725-5875 MHz, max. power 25 mW with built-in antenna or antenna prescribed by the manufacturer.
According to the wording of the VO, it is specified under letter g) that automatic regulation must regulate by at least -3 dB. Automatic regulation is not mandatory; if the device does not have regulation, then it is sufficient to calculate the radiated power by 3 dB lower for use.
