Solarmi DC05R equipped distribution board for photovoltaics, arrester, disconnector, fuses, up to 500V

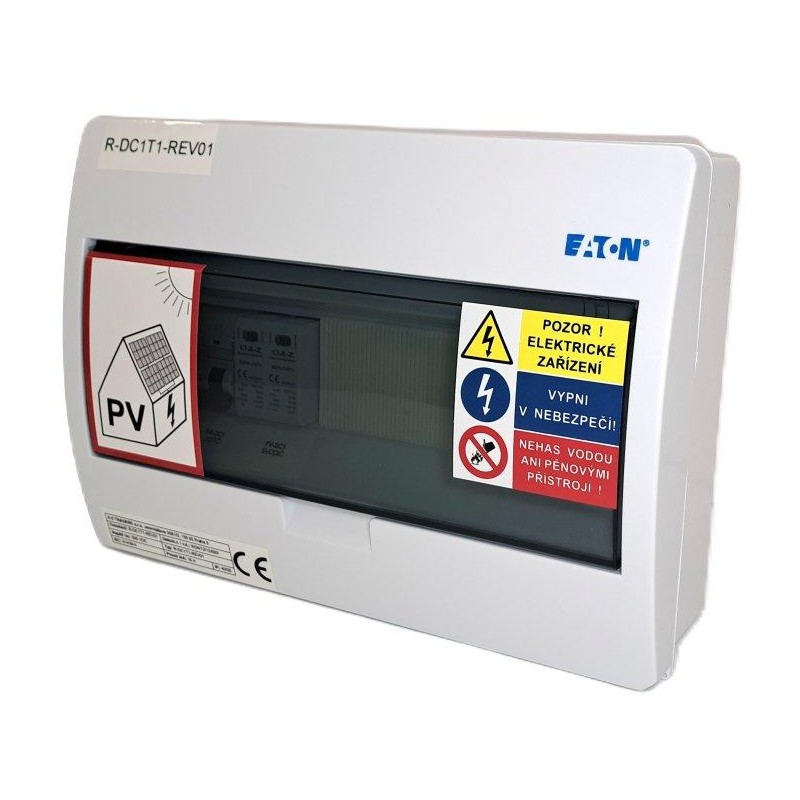

Xtend Solarmi DC05R fitted distribution board

DC05R distribution board (T1+T2), surface-mounted distribution board.

DC distribution board designed for wall mounting, IP40/20 serving as an input distribution board from photovoltaic panels (to the inverter) when using water heating technology or PV strings up to 500 V.

•

• Meets the standard/requirements according to ČSN EN 61439-2 ed. 2:12

• White plastic distribution box, rear cover part of the distribution box + plastic door made of smoked organic glass

• Protection class IP40/20 & Mechanical resistance IK05

• Protection class II (fully insulated)

• Including N/PE terminal block

• 1 row, 12 modules, DIN rail

• Rated voltage 400 V AC & Rated insulation voltage 400 V AC


The switchboard is equipped with a DC surge arrester of class T1+T2 and a two-pole DC circuit breaker to protect the DC input of the inverter.

Component list:

1× Surface-mounted distribution board, transparent plastic door, 1 row, 12 modules

1× Surge arrester T1+T2 (I+II, B+C), photovoltaic applications 600 V DC, In 20 kA, Imax 40 kA

1× Circuit breaker, photovoltaic applications, 2-pole, 500 V DC /15 A, short-circuit resistance 6 kA

BASIC SPECIFICATIONS

Intended use: for photovoltaics

Fitted: yes

Material: plastic

Dimensions: 303 × 212 × 98 mm
