Planet LRE-104, UTP/Coax extender, 4x LAN 100Base-TX, LRE (IEEE 1901), range 2km (BNC) & 800/1200m (RJ-45/RJ-11)

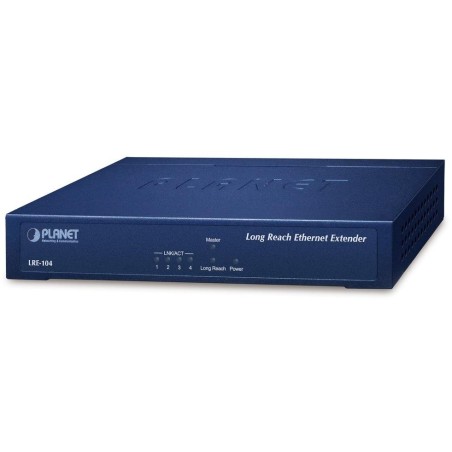

PLANET LRE-104

The Ethernet extender allows you to extend the maximum data transmission distance up to 800 m over UTP (RJ-45 cable), 1.2 km over telephone line (RJ-11 cable) or up to 2 km over coaxial cable (BNC) . It is equipped with four RJ-45 ports, one combined UTP RJ-45/BNC connector and one RJ-45/RJ-11 port. It provides a total duplex data transfer rate of 100 Mb/s.

PLANET LRE-104 is a Long Reach Ethernet ( LRE, IEEE 1901 ) solution that provides a quick replacement and smooth transition from an existing analog system to a fully digital system.

•

• For long-distance Ethernet over coaxial applications

• LRE (Long Reach Ethernet) transmission according to IEEE 1901

• 4x 10/100 Base-TX RJ-45, 1x BNC, 1x RJ-45/RJ-11

• DIP Switch - master/slave

• AES-128 encryption

• W-OFDM modulation (Wavelet-OFDM)

• Frequency spectrum 2–28 MHz

• PtP (point-to-point) mode


You can find the transmission speeds depending on the distance in the attached datasheet or on the manufacturer's website.

The LRE-104 offers 2 operating modes, "Slave" on the client side and "Master" on the central office side, allowing easy and flexible use in any network. The "Slave" or "Master" mode can be set using the built-in DIP switch. For point-to-point connection, one LRE-104 converter in "Slave" mode and the other in "Master" mode must be set as a pair of converters to realize the connection. This allows the administrator to effectively manage the network over UTP cable.

BASIC SPECIFICATIONS

Ports: 4x RJ-45 10/100 Base-TX, 1x BNC (EoC - Ethernet over Coaxial), 1x RJ-45/RJ-11

Power supply: external DC 12 V adapter (included)

Protection: ESD up to 6 kV

Operating temperature: 0 to +50 °C, humidity 5-95%

Dimensions: 154.6 × 86 × 26.3 mm

Weight: 347g
