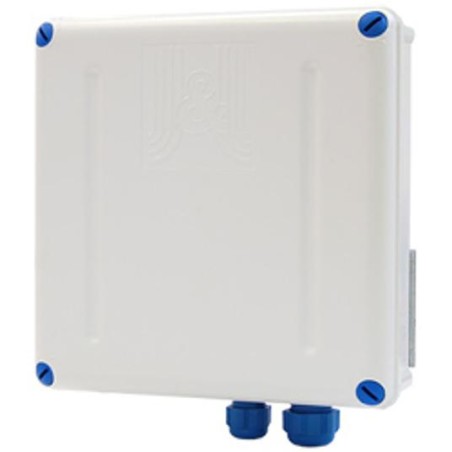

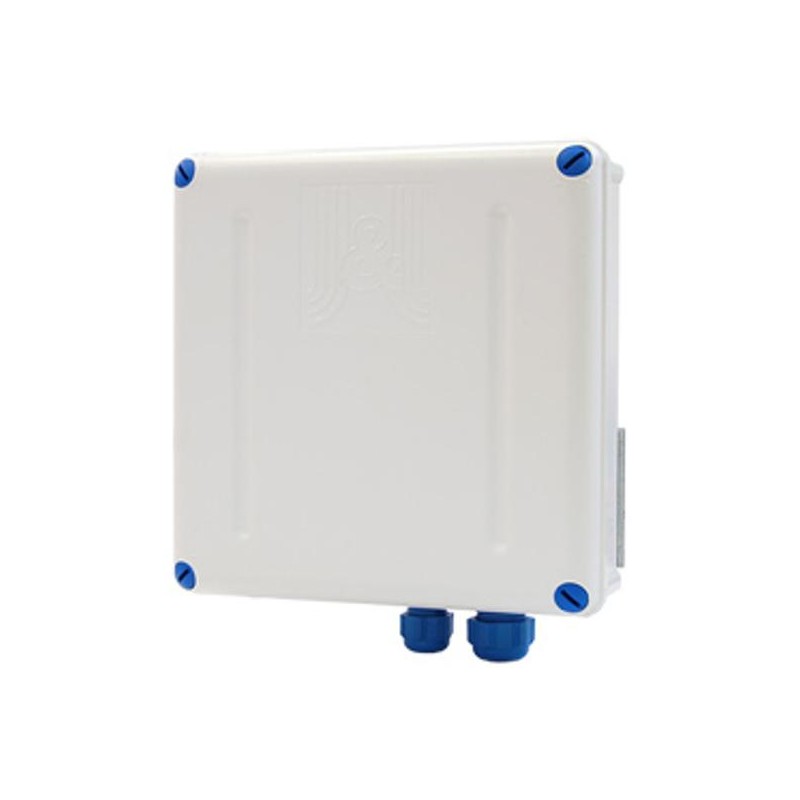

JRC GentleBOX JE-200 outdoor box incl. pole mount

JRC GentleBOX JE-200

GentleBOX is a complete and ideal outdoor box for AP, RouterBOARD and other electronics. It contains a unique system of grooves and holes to attach most types of RouterBOARDs in use.

This BOX is a very suitable solution for protecting AP, RouterBOARD and other devices from weather conditions. The BOX is already delivered as a complete solution - there is no need for any modifications or finding waterproof cable glands or material for holding the AP or RouterBoard in the BOX. Easy operation and installation are also ensured by special grooves preventing
turning the grommets when tightening or loosening. All you need for assembly is a wrench, flathead screwdriver and Phillips screwdriver. Any device not exceeding 186x186x53 mm in size can be placed in the BOX. Tested with the RB711, RB411, RB433 series (can only be fitted with two miniPCI cards).

BASIC SPECIFICATIONS

External dimensions: 203 × 203 × 65 mm

Internal dimensions: 186 × 186 × 53 mm

Material: UV stabilized ABS plastic, Polyamide

Protection level: IP56 (devices inside must be powered by safe voltage)

Mounting: on a 19–54 mm pole

Accessories included in the package:

Captive bayonet "screws" for easy closing of the BOX: 4 pcs.

Pole mount: 19 – 54 mm

Cable gland for cables: 4 – 10 mm, 2 pcs.

Screws for mounting electronics + plastic posts: 4 + 4 pcs
