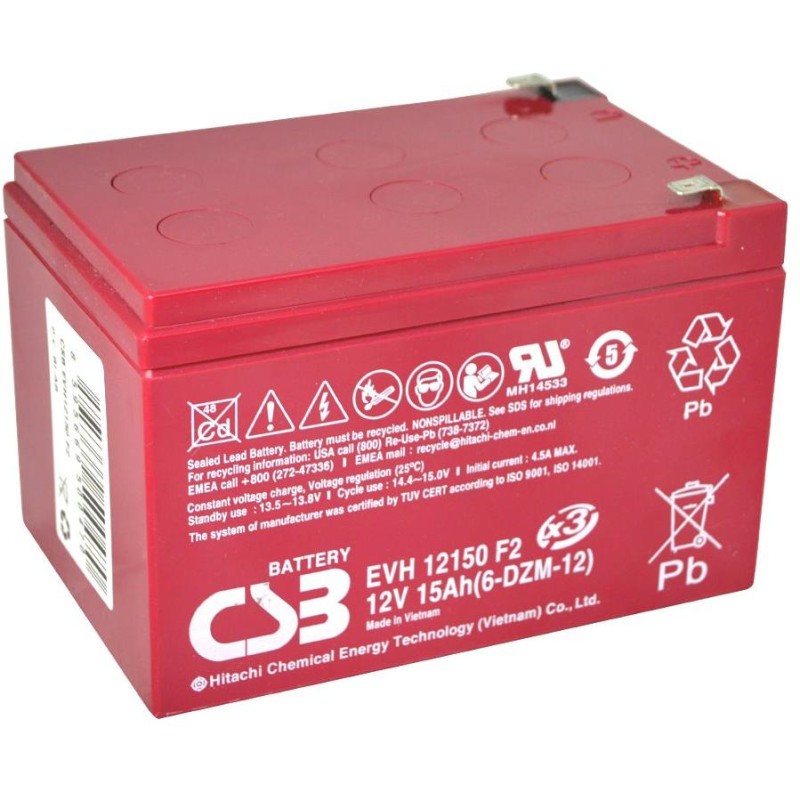

CSB EVH12150 (6-DZM-12)
Backup lead-acid battery (12 V, capacity 15 Ah) in VRLA (AGM) design.
It is a design in which the internal pressure is regulated using valves (VRLA - Valve Regulated Lead Acid).
- AGM = electrolyte is bound in glass fleece
- High quality standard of materials used and workmanship
- Higher maximum discharge currents
- Absolutely maintenance-free (in terms of water refilling)
- Longer life than a conventional flooded battery
- Cyclic endurance (resistance to repeated charging and discharging)
- Deep discharge resistance (better withstands deep discharge)
- In cyclic operation, charging voltage 14.4 to 15.0 V at a temperature of +25 °C
- When operating as a backup power source, charging voltage 13.5 to 13.8 V at a temperature of +25 °C
- Vibration-proof
- Leak-proof block - the battery can operate continuously at an angle of inclination of up to 90°
- This is not a dangerous product according to FAA and IATA categories.
AGM (Absorbed Glass Mat) technology:
Although the battery contains electrolyte in a liquid state, it is "soaked" in fiberglass microfibers , or so-called glass wool, and is thus firmly bound in the interior of the battery cells ( its leakage is practically eliminated ).
CSB EVX and EVH series AGM traction batteries. These are sealed lead-acid batteries in VRLA design. This is a design in which the internal pressure is regulated by valves (VRLA - valve regulated lead acid = valve-controlled lead-acid batteries). AGM technology (absorbed glass mat = electrolyte absorbed in glass fleece), the battery does not contain electrolyte in a liquid state, the electrolyte is absorbed in glass fleece, and thus it is firmly bound in the interior of the battery cells, which eliminates its leakage. The extra strong cell grid ensures high cyclic resistance of the battery. CSB EVX and EVH series batteries can also be used for "stand by" applications, when the batteries are under constant power supply and serve as a backup source in the event of a power outage. Especially where outages are frequent and the batteries are deeply discharged.
Lifespan: approximately 700 cycles / 50% DoD
CSB AGM batteries EVX and EVH series, optimal service life is given in cycles at a temperature of +20 °C, the number of discharge cycles with regular discharge to 50% DoD (Depth of Discharge = depth of discharge, 50% of energy is removed from the battery) is approximately 700 cycles.
These traction batteries are primarily intended for the following applications:
- Power supply for ELECTRIC MOTORS (golf carts, electric bicycles, electric scooters and others)
- MOTORHOME (caravans, trailers, external power supplies)
- SHIPS, BOATS, SAILING BOATS, (for electric motor, power supply of other devices on board)
- SOLAR DEVICE (cyclic charging and discharging – solar energy accumulated in the battery)
- MOBILE TRAFFIC CONTROL SYSTEMS, TRAFFIC LIGHTS, WARNING SIGNS
- Toys, children's scooters - rides, etc.
CSB brand products are used by world-renowned computer and office equipment manufacturers such as: POWERWARE, APC, LIBERT, MGE, RIELLO, SICON SOCOMEC, IBM, ASCOM, etc.
The quality of batteries, used, for example, in backup power supplies, is ensured by several properties. OneOne of the main requirements is the requirement for the same physical properties of individual battery cells, connected in series or series-parallel. If this condition is met, a high service life is guaranteed. CSB batteries meet this condition, and millions of users around the world can appreciate this.
BASIC SPECIFICATIONS
Capacity: 15Ah
Voltage: 12V
Battery technology: VRLA/AGM
Contact type: Faston 6.3 mm (F2)
Max charging current: 4.5 A
Max. discharge current: 180 A (5 seconds)
Status: charged
Dimensions: 151 × 102 × 98 mm
Weight: 4.6 kg
