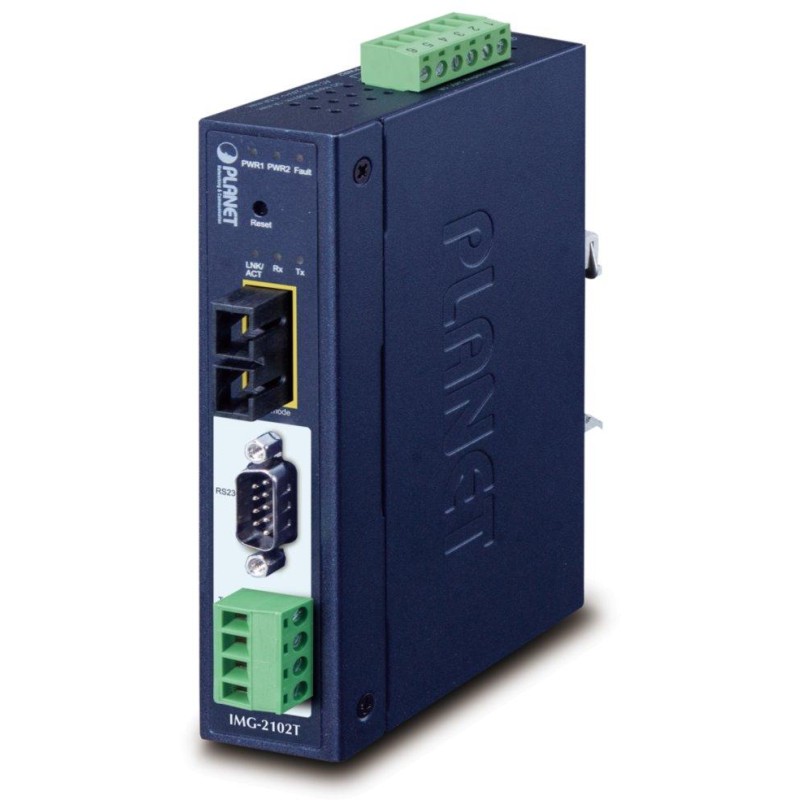

PLANET IMG-2102T
Industrial MODBUS gateway with conversion of 1x RS-232 (DB9) + 1x 4pin terminal block RS-485/422 to TCP/IP protocol ( multimode, SC duplex, 100Base-FX), range 2 km . Serial communication type is selectable RTU/ASCII, master/slave.
Redundant power supply in the range of DC 9-48 V / AC 24 V , IP30 protection, DIN rail or wall mounting, metal housing, operating temperature -40 to +75 °C .
Serial communication transmission over IP protocol is particularly used for data acquisition, control machines, SCADA/HMI systems and camera control systems . It also replaces the physical conversion of the serial protocol to another transmission medium. It practically extends the range of serial communication indefinitely.
Industrial Ethernet devices are designed for demanding operating conditions with a wide range of operating temperatures, uncertain power supply and frequent shocks, enabling the deployment of well-known Ethernet technology in industrial environments. It is also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
BASIC SPECIFICATIONS
Network features:
- 1x DB9 serial connector (RS-232)
- 1x 4pin terminal block (RS-485 / RS-422)
- 1x SC (duplex), multi-mode, range 2 km, 50/125 µm or 62.5/125 µm, 100Base-FX
- Web, Telnet, VCOM Utility management, SNMP v1/v2c, SNMP Trap and UNI-NMS management
- Automatic discovery utility - Planet Smart Discovery
- LED indicators for operation diagnostics
- Parity: even, odd, none, space, mark
- Transmission speed: 50 bps - 921 kbps
- Protocol support: Modbus TCP, Modbus RTU, Modbus ASCII, IP, ARP, DHCP, DNS
- For master up to 32 slave TCP connections, for slave up to 32 TCP connections
Working modes:
- RTU Master
- RTU Slave
- ASCII Master
- ASCII Slave
Signal connection
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485 (4 wires): Tx+, Tx-, Rx+, Rx-, GND
- RS-485 (2 wires): Data A (+), Data B (-), GND
Physical properties:
Ports: 1x SC duplex (multimode), 1x COM (DB-9 type) serial port (RS-232), 1x 4pin terminal block (RS-422/485)
MODBUS support: yes
Protection: IP30, all-metal housing
Power supply: DC 9-48 V or AC 24 V external power supply, redundant power supply, power consumption up to 6 W (power supply not included)
Protection: surge protection up to 2 kV, ESD up to 6 kV
Operating temperature: -40 to +75 °C, humidity up to 95%
Dimensions: 135 x 87.5 x 32 mm
Weight: 386g
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetethical compatibility of multimedia devices
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
