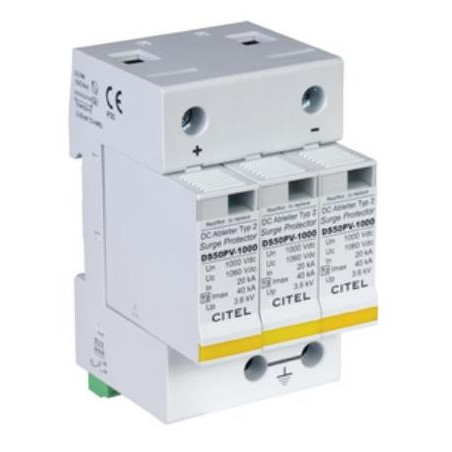

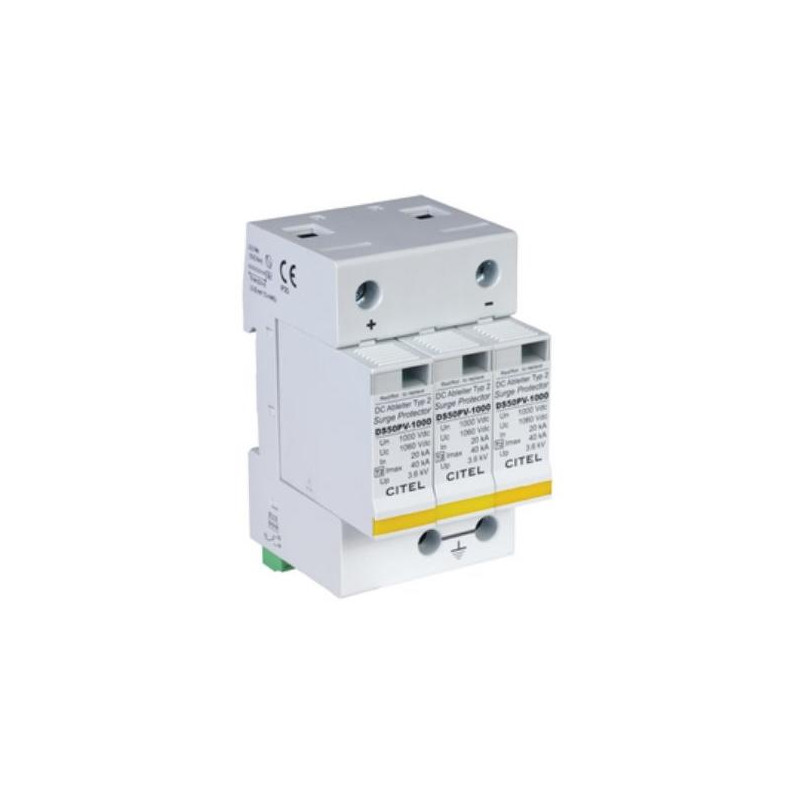

Solarmi DS50PVS-1000DE surge arrester, 1000Vdc, CE

Xtend Solarmi DS50PVS-1000DE

Surge arrester specially developed for the protection of photovoltaic installations against overvoltage. The DS 50PVS surge arresters are two-part arresters of type 2 (with modular structure) and are mounted on a DIN rail . The exchangeable module allows easy replacement of a damaged part without the need to dismantle the connected wires.

These arresters contain a high-performance varistor with a thermal fuse and in the event of a fault, the thermal disconnection device disconnects the arrester's current circuit, which is signaled by an optical indication of the arrester's status.

Features:

•

• Surge protection for photovoltaics type 2

• Safe disconnection device

• Fault-tolerant Y-connection

• No damage occurs in the event of insulation failure

• Modular structure

• Remote signaling contact as standard

• Complies with EN 61643-31 and NF EN 50539-11 standards


BASIC SPECIFICATIONS

Rated voltage (Un): 1000 V

Max. permissible operating voltage (Uc): 1300 V

Limiting leakage current Imax (8/20 µs): 40 kA

Rated leakage current ln (8/20 µs): 20 kA

Protection: IP20

Operating temperature: -40 to +85 °C
