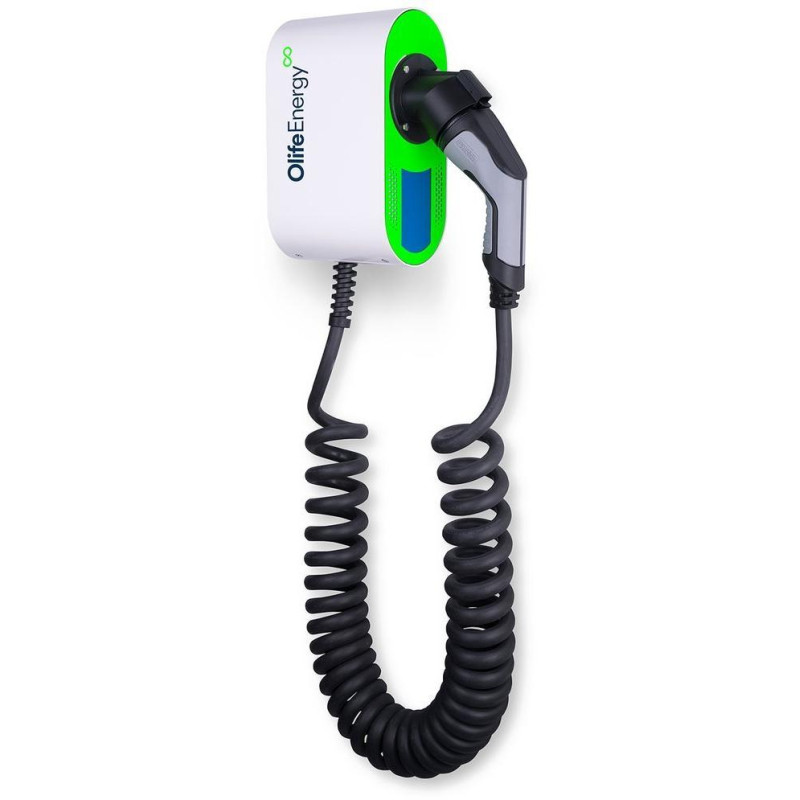

OlifeEnergy EV charging station CLOUD 22 kW
WallBox is a durable charging station for charging all electric vehicles on the EU market with a power of up to 22 kW (alternating current AC). The charging station is designed for outdoor use and installation in the garage. It also offers the option of mounting on a wall (wallbox) or on a profile anchored to the ground (pole).
This WallBox is equipped with a wide range of functionalities. Charging can be started automatically immediately after connecting the vehicle and identifying it with an RfID card or mobile phone. Complete configuration is also carried out via the mobile app. The station power can be set in the range of 0 to 22 kW.
AC stations in the CLOUD variant add full control over charging, including remote control via the Internet. After connecting to the application, it will allow monitoring and management of charging, user authorization along with overviews of the history and energy consumption of each user . Its functionality is also expanded by the possibility of connecting to the OlifeEnergy Cloud service and the OCPP server . The OlifeEnergy Cloud service provides remote diagnostics, access management and charging records. It also enables the operation of a public charging station. Through OlifeEnergy Cloud, the performance of multiple stations can be dynamically controlled and cooperate with existing MaR systems.
- AC supply type: AC 3 + N + PE 400 V 50 Hz, TN-S
- Max. cable cross-section: 10 mm 2
- Control: local - automatic, RFID, mobile application (Bluetooth), mobile application (LAN/Wi-Fi) , OlifeEnergy Cloud, OCPP (1.6/2.0)
- Residual protection: detection of residual DC current according to IEC 62955
- Communication: Bluetooth, Modbus RTU (via RS-485), ADC 0–10 V, Ethernet, Wi-Fi, GSM
BASIC SPECIFICATIONS
Power: 22 kW
Input voltage: 3× 400 V (option 1× 230 V)
Input current: 0-32A
Connection type according to ČSN EN 61851: Type C
Output: Type 2 (according to ČSN EN 62196), twisted cable
Protection category: IP54
Operating temperature: -25 to +40 °C
Dimensions: 320 × 266 × 120 mm
Weight: 10 kg (net, packaging + 2 kg)
