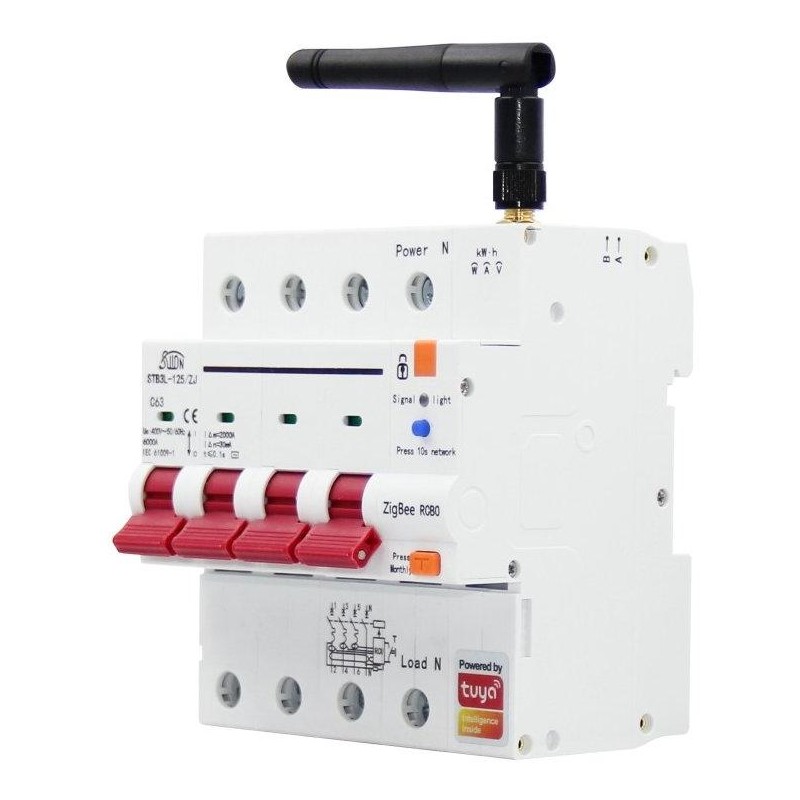

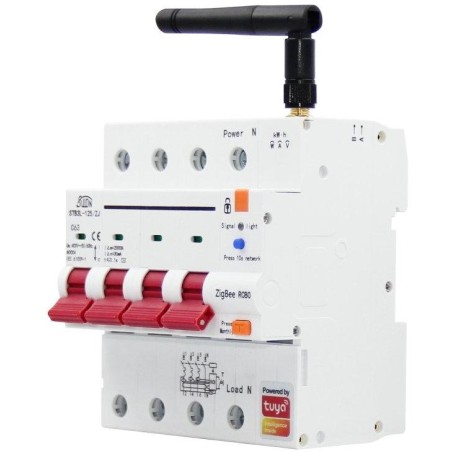

IMMAX NEO SMART circuit breaker 3P+N 10-63A with residual current device, consumption measurement, Zigbee 3.0, TUYA

Smart three-phase circuit breaker with residual current device and the possibility of measuring consumption via Zigbee 3.0

The three-phase circuit breaker with residual current device and consumption measurement is a modern solution for securing your electrical circuits. It is designed for 50/60 Hz alternating current circuits with a nominal voltage of 230/400 V and an adjustable switching current of 10–63 A. It ensures disconnection, switching and protection of electrical circuits against ground fault currents, thus also ensuring fire protection.

Thanks to the integration of the Zigbee 3.0 protocol and compatibility with the TUYA system, you can conveniently control and monitor the circuit breaker via the IMMAX NEO PRO application. The application allows you to set tripping characteristics (B, C, D), fuse values, overvoltage and undervoltage protection, and also monitor current energy consumption.

ATTENTION

This is not a Wi-Fi device, it requires use with IMMAX NEO PRO Smart Zigbee 3.0 (can be purchased separately), or another hub on the TUYA platform that communicates using the ZigBee 3.0 standard.

BASIC SPECIFICATIONS

Protocol: ZigBee 3.0 (2.405-2.480 GHz)
Rated voltage: AC 230 V/400 V, 50/60 Hz
Maximum rated current: 63 A
Current protection: 10 A, 32 A, 40 A, 50 A, 63 A (adjustable in the application)
Short-circuit breaking capacity: 6000 A
Surge protection: 220-265 V (adjustable in the app)
Undervoltage protection: 150-250 V (adjustable in the app)
Wireless range: line of sight 30 m, approx.built-up area 10 m
Operating temperature: -25 to 70 °C
Dimensions: 135 × 90 × 74 mm
Weight: 504g
Degree of protection: IP20
Package contents: circuit breaker, antenna, user manual
