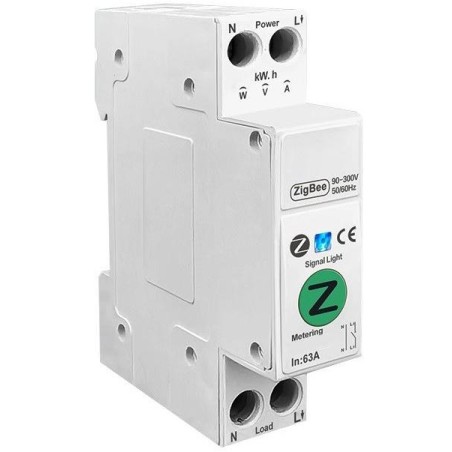

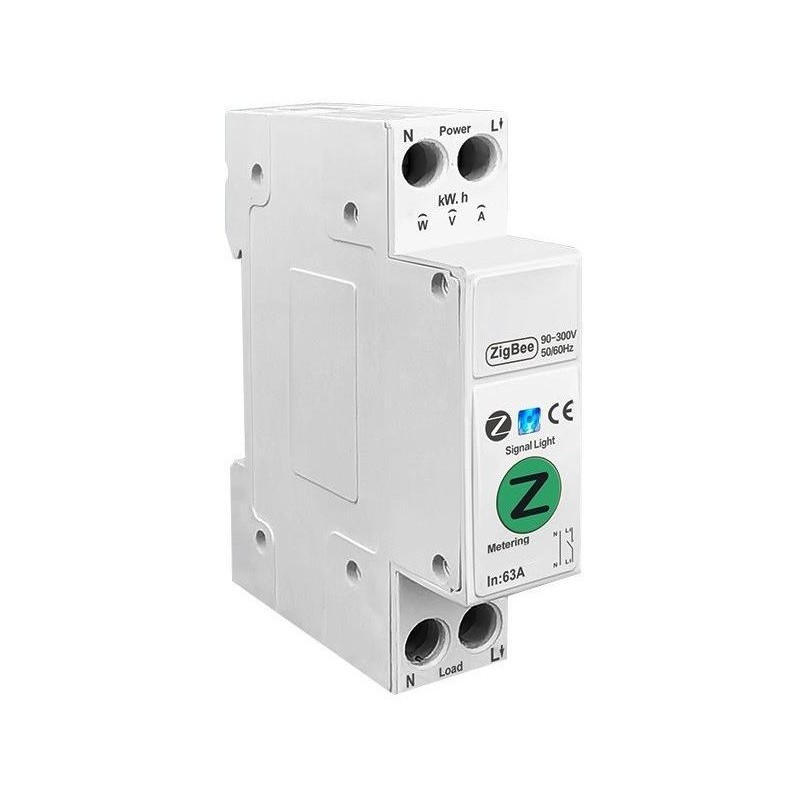

IMMAX NEO SMART electronic circuit breaker single-phase 1-63A, consumption measurement, Zigbee 3.0, TUYA

IMMAX NEO SMART 07573L

Smart electronic circuit breaker with consumption measurement and optional protection settings - current protection, overvoltage, undervoltage . It is fully compatible with iOS, Android, Amazon Alexa, Apple Siri shortcuts, Google Assistant, TUYA, Lidl . It works on the ZigBee 3.0 protocol. Installation on a DIN rail .

Please note, this is not a Wi-Fi circuit breaker, it requires an Immax NEO BRIDGE PRO Smart Zigbee 3.0 or other smart Tuya hub to use.

BASIC SPECIFICATIONS

Protocol: ZigBee 3.0

Frequency: 2400–2483.5 MHz

Maximum RF output power: 19 dBm

Voltage: AC 100-260V (50/60Hz)

Max. load: 26 kW

Current protection: 1–63 A

Mains standby power (Pnet): 0.4 W

Protection: against overheating, against overvoltage and overload

Wireless range: 30 m line of sight, 10 m in built-up areas

Number of switched circuits: 1

Surge protection: 220-265V

Undervoltage protection: 76-240 V

Operating temperature: -25 to +70° C

Degree of protection: IP20

Dimensions: 82 × 66 × 18 mm
