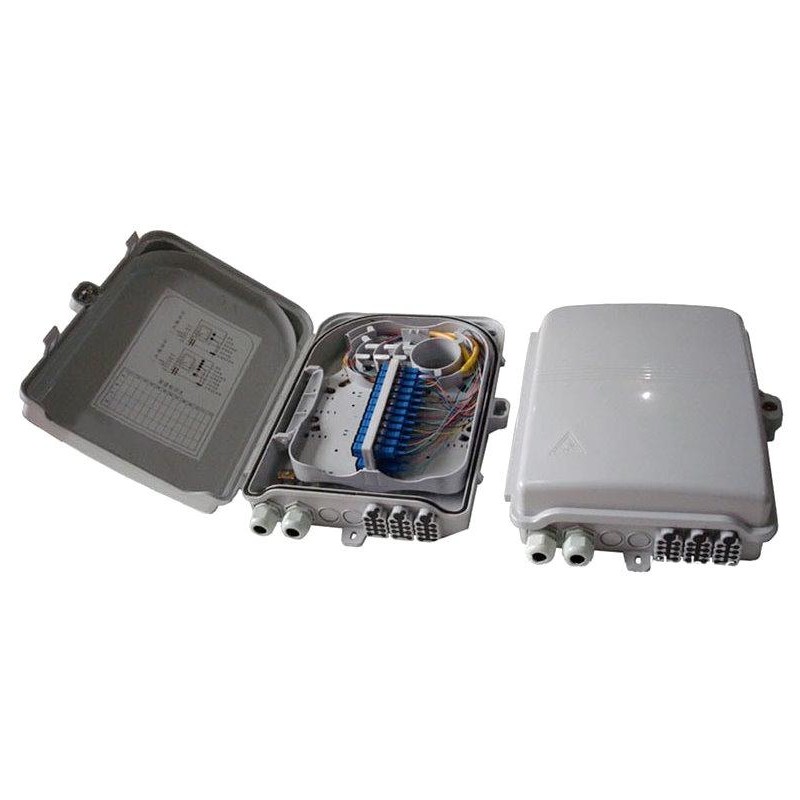

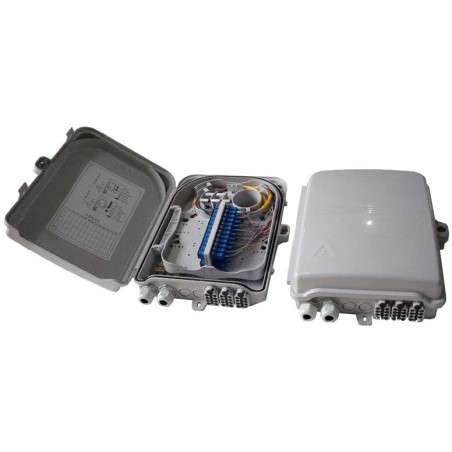

XtendLan plastic distribution box for FTTH applications, 24 SC taps, 2 cable ports, outdoor

XtendLan ORSW-224-SCS

Waterproof wall-mounted plastic distribution box with 2 holes for input/output cable and 24 output SC ports for connecting end outlets.

Typically suitable for branching lines or connecting splitters. Screw-locked box closure, outdoor waterproof design.

The distribution board is typically suitable for outdoor installations, but due to its aesthetic appearance it is also suitable for indoor installations. We usually terminate the lines in it, which we locally branch or connect to PLC splitters.

The housing has internally hinged layers on which components are installed.

On the front:

- panel for SC simplex adapters, 24 positions (SC adapters are not included in the package)

- coil for drop cables, it is assumed to use end lines with cables with a diameter of 2-3 mm

- fastening brackets for supply cables

On the back of the flip panel:

- positions for placing welds

- winding spool for fibers

Passages:

- 2x PG19 grommet

- 24x grommet for drop cables

BASIC SPECIFICATIONS

Number of positions: 24

Dimensions: 330 x 275 x 100 mm
