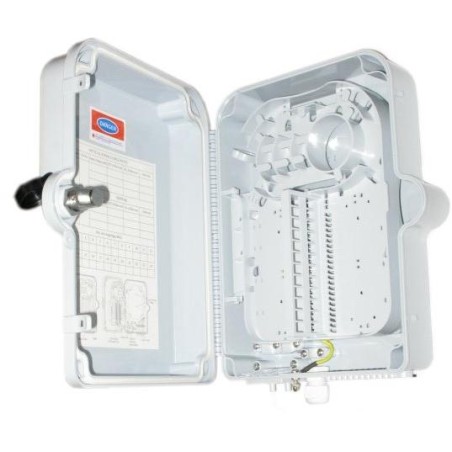

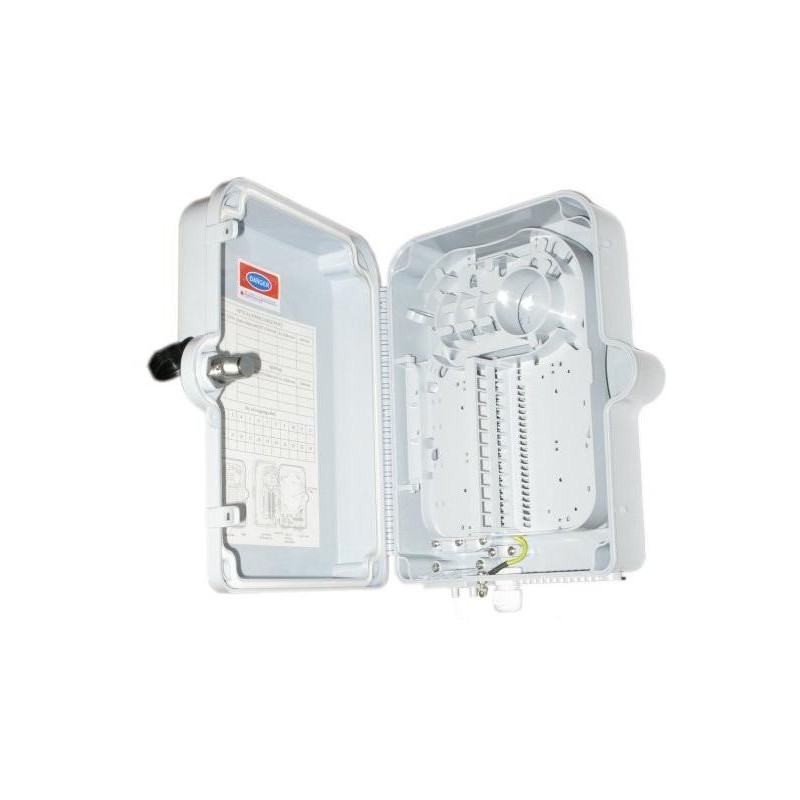

XtendLan plastic distribution box for 24 branches (drop-out), 2+1 cable ports, waterproof Ip65, coil

XtendLan ORSW-324-SCSB

Waterproof wall-mounted plastic distribution box. 2+1 holes for input/output cable, 24x output ports for connecting terminal outlets.

Typically suitable for branching lines or connecting a splitter. There is a prepared position for placing the splitter. The box is closed with screws and a handle.

The distribution board is typically suitable for outdoor installations, but due to its aesthetic appearance it is also suitable for indoor installations. We usually terminate the lines in it, which we locally branch or connect to PLC splitters.

It can also be used for continuous fiber branching from a cable line or for wavelength branching using wave filter techniques.

The housing has internally hinged layers on which components are installed.

BASIC SPECIFICATIONS

Features:

Front side:

•

• panel for SC simplex adapters, 24 positions

• coil for drop cables, it is assumed to use end lines with cables with a diameter of 2-3 mm

• fixing brackets for supply cables


Back side:

•

• positions for placing welds

• winding spool for threads

• place for placing splitters and other passive fiber optic components (PLC splitters, color demultiplexers, OADM...)


Passages: 3 x PG19 gland, 24 x drop cable gland

Material: plastic:

Protection: IP65

Color: gray
