XtendLan plastic distribution box for 8 branches, 2 cable ports, waterproof, coil

XtendLan ORSW-208-SCS

Waterproof wall-mounted plastic distribution box. 2 holes for input/output cable, 8 output ports for connecting terminal outlets.

Typically suitable for branching lines or connecting a splitter. There is a prepared position for placing the splitter.

The cables are fixed in screw clamps. The box is closed with a screw. The distribution board is typically suitable for outdoor installations, but due to its aesthetic appearance it is also suitable for indoor installations. We usually terminate lines in it, which we locally branch or connect to PLC splitters. It can also be used for continuous branching of fibers from a cable line or branching of wavelengths using wave filter techniques.

The case has an internally hinged layer on which the component is installed:

•

• positions for placing welds

• winding spool for fibers

• place for placing splitters and other passive fiber optic components (PLC splitters, color demultiplexers, OADM...)


BASIC SPECIFICATIONS

Number of ports: 2 x cable, 8 x tap

Color: white

Dimensions: 181 x 45 x 207 mm

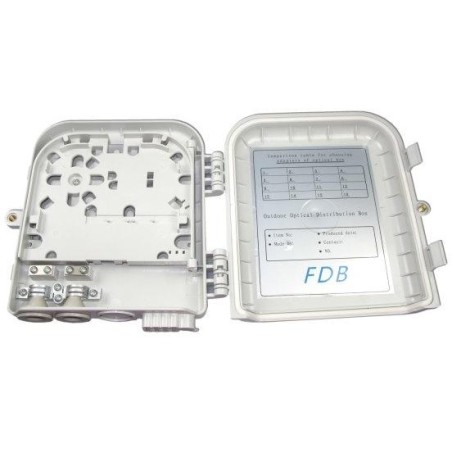

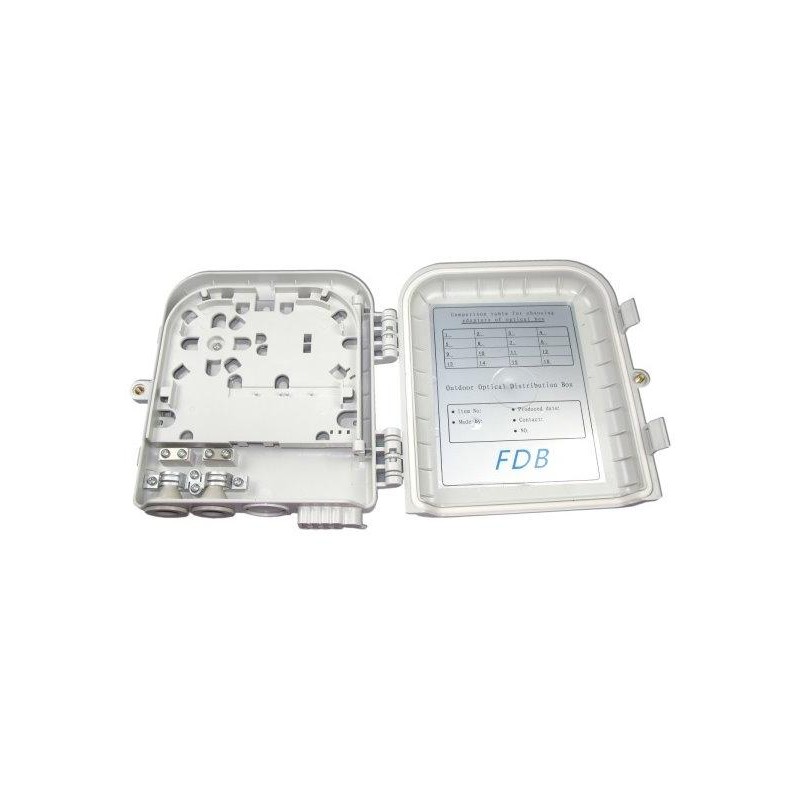

View of the open cassette
