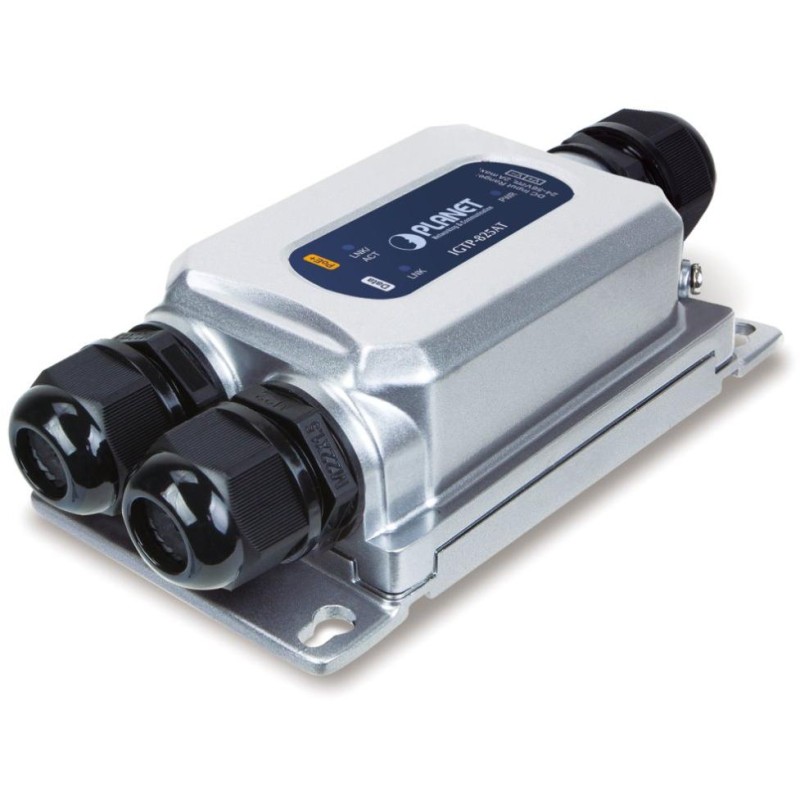

PLANET IGTP-825AT
Industrial Gigabit PoE+ converter for easy transition between metallic and optical lines ( 1000Base-SX/LX/BX to 10/100/1000Base-T ).
Power supply in the range of DC 24-56 V , PoE+ output with a power of up to 30 W , IP67 protection, metal anti-vandal design with IK10 resistance, extended operating temperature -40 to +75 °C .
Surge ESD protection up to ±6 kV (±8 kV through air), surge protection up to 6 kV, mounted directly on the wall.
Industrial Ethernet devices are designed for harsh operating conditions with a wide range of operating temperatures and frequent shocks. It is suitable for installations in outdoor cabinets with large fluctuations in operating temperatures.
BASIC SPECIFICATIONS
Physical properties:
Ports: 1x RJ-45 10/100/1000Base-T with PoE+ function, 1x SFP 1000Base-SX/LX/BX
Design: wall-mounted
Power supply: DC 24-56 V power supply, total power consumption without PoE+ up to 1.62 W (power supply not included)
Protection: ESD air up to 8 kV, contact up to 6 kV, surge protection up to 6 kV
Operating temperature: -40 to +75 °C
Dimensions: 150 x 72.94 x 43.8 mm
Weight: 389g
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by high-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
