Planet XT-705A converter 10G/5G/2.5G/1G/100M / miniGBIC SFP+ 10GBASE-X

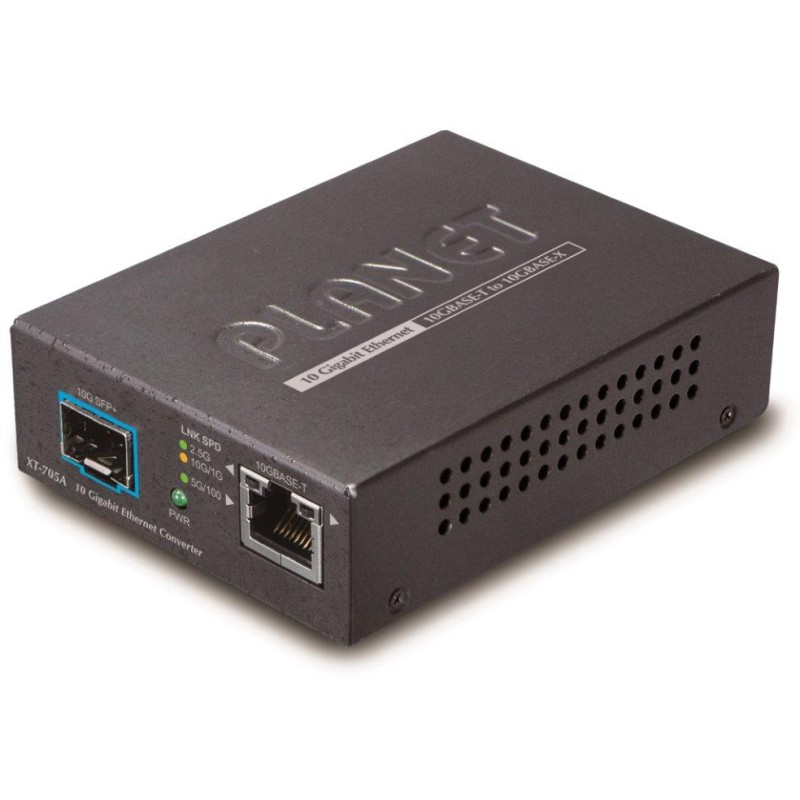

PLANET XT-705A

A simple media converter equipped with a metallic RJ-45 connector with speeds of 100/1000/2.5G/5G/10G and an optical SFP+ port with speeds up to 10GBASE. It is suitable for use in networks where extremely high bandwidth is required, such as data centers, cloud storage, or operator infrastructure.

Thanks to its reliability, high transmission speed is guaranteed without the risk of packet loss at extreme speeds. Protection up to 6 KV DC ESD is a matter of course. Another advantage is the low consumption of 3.75 W at full load.

BASIC SPECIFICATIONS

Physical properties:

Ports: 1 x RJ-45 100/1000/2.5G/5G/10GBASE-T, 1 x SFP+ 10GBASE-XR

Transmission support: JumboFrame 16K

Throughput: 20 Gbps bus, operational 2.48 Mpps (64B)

Table of records: 9K MAC addresses

Design: internal

Power supply: 5V DC power supply, 2A max., total power consumption up to 3.75 W

Protection: ESD 6 KV DC

Operating temperature: 0 to 50°C

Dimensions: 94 x 70 x 26 mm

Weight: 180g

Connection example:
