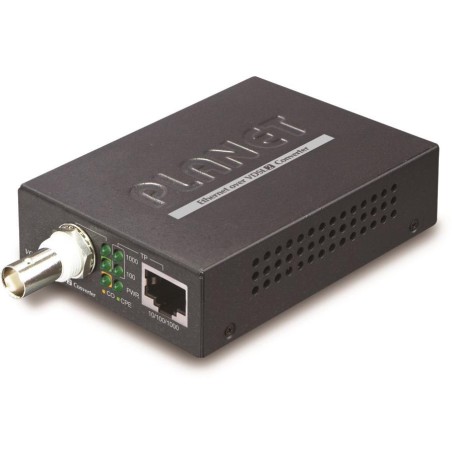

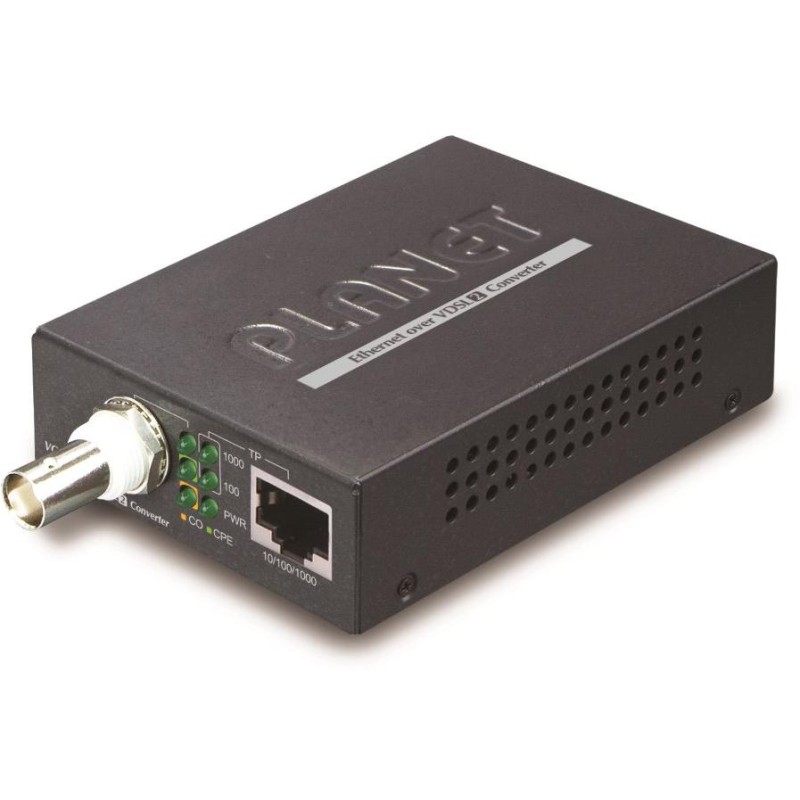

PLANET VC-232G
Ethernet over coaxial cable (VDSL2 technology). 1x LAN RJ-45, 1x VDSL2 BNC (coaxial). Transparent bridge. G.993.2 VDSL2, G.993.5 G.Vectoring + G.INP. Power supply DC 5 V/ 2 A (power supply included).
Capacity 200/100 Mbps at 200 m. Range up to 1.4 km. DIP switch settings, optional Master (CO) / Slave (CPE).
LRE (Long Reach Ethernet) Ethernet converter to VDSL2 (Very-high-data-rate Digital Subscriber Line 2) Ethernet converter allows data to be transferred via coaxial line up to 200 Mbit/s at 200 m or 30 Mbit/s at a distance of up to 1.4 km, transmission speed depending on the condition and quality of the coaxial cable used. Original coaxial distributions, including antenna distributions, can be used. The device is universal as a master (CO) / slave (CPE) unit, mode setting by switch. The unit supports VDSL2 operating modes according to transmission profiles "17a" and "30a", selection according to "band Plan997" and G.993.5 G.Vectoring & G.INP affecting symmetrical data transmission at higher speeds even on parallel lines.
BASIC SPECIFICATIONS
Ports:
1x 10/100Base-TX, RJ-45
1x VDSL, BNC connector, range 1.4 km
Transmission support: up to 9kB (JumboFrame)
Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3p
Transparent for: IEEE 802.1Q VLAN tag
Standard: ITU-T: G.993.1 - VDSL, G.997.1, G.993.2 - VDSL2 (profiles 17a/30a), G.993.5 G. - Vectoring and G.INP, G.998
DIP switching: CPE/CO selection, modulation selection, communication limit selection, SNR selection
Power supply: from external adapter, 5 V/2 A (power supply included)
Operating temperature: 0 to 50 °C, humidity <90%
Dimensions: 97 x 70 x 26 mm
Weight: 185g
Can be installed in chassis: MC-700, MC-1500R, MC-1500
Example of ranges and speeds (down/up Mb/s) on lines with RG6 and better conductors:
?200m ->95Mbps/200Mbps
?400m ->82Mbps/175Mbps
?600m ->59Mbps/151Mbps
?800m ->37Mbps/122Mbps
