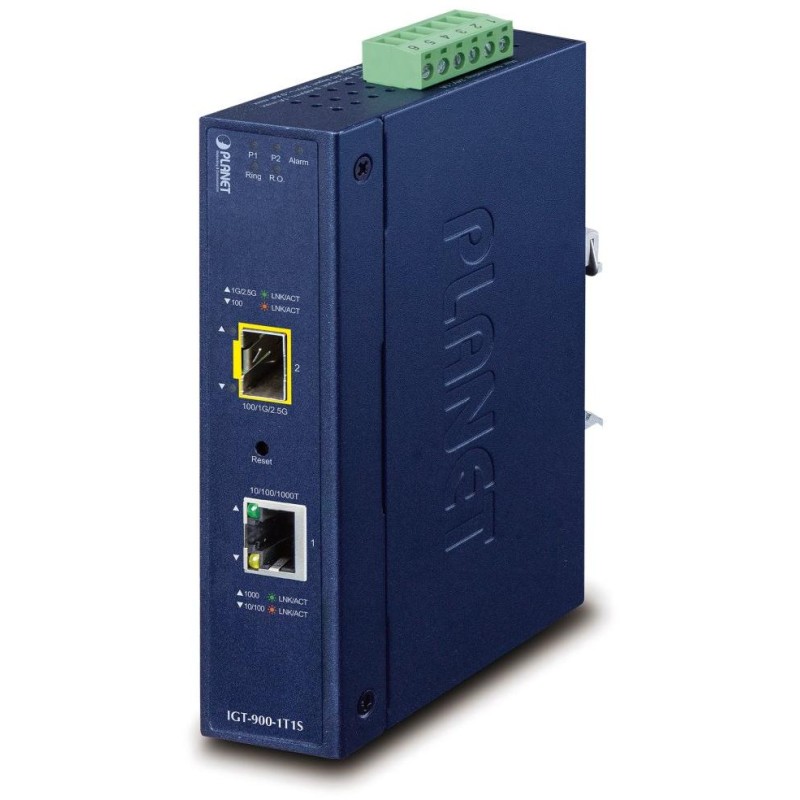

PLANET IGT-900-1T1S
Managed L2+ industrial Ethernet converter RJ-45 10/100/1000 Base-T to 100/1G/2.5G Base-X optics with SPF slot for installing an optical module.
Static L3 routing, VLAN, STP (802.1d/w/s), Cisco Uni-directional link detection (UDLD), QoS, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, management (Telnet, web interface, SNMP v1/v2c), SSH v2, TLS v1.2, SNMP v3, LLDP support, NTP, PLANET Smart Discovery Utility and CloudViewer app , IEEE 1588v2 PTP (Precision Time Protocol), Modbus TCP for real-time monitoring in the SCADA system, ERPS Ring (ITU-T G.8032) .
Redundant power supply option in the range of DC 9-48 V or AC 24 V , IP30 protection, metal case/cover, extended operating temperature -40 to +75 °C , ESD protection up to 6 kV DC, mounting on a DIN rail or directly on the wall.
The switch features user-friendly yet advanced IPv6/IPv4 management interfaces, rich L2/L4 switching features, and Layer 3 static routing capabilities. It can be mounted on a DIN rail or wall for efficient space utilization.
Industrial Ethernet devices are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply and frequent shocks. The converter is easily installed on a standard DIN rail or directly on the wall and allows the deployment of well-known Ethernet technology even in industrial environments. It is also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications of the FTTH type).
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 1x RJ-45 10/100/1000 Base-T, 1x SFP 100/1G/2.5G Base-X
Transmission support: JumboFrame 9k
Design: DIN rail, wall-mounted
Power supply: DC 9-48 V or AC 24 V, connection possible from two different sources (not included), total power consumption up to 8 W
Protection: ESD up to 6 kV DC, reverse polarity protection
Operating temperature: -40 to +75 °C
Dimensions: 135 x 87 x 32 mm
Weight: 273g
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
