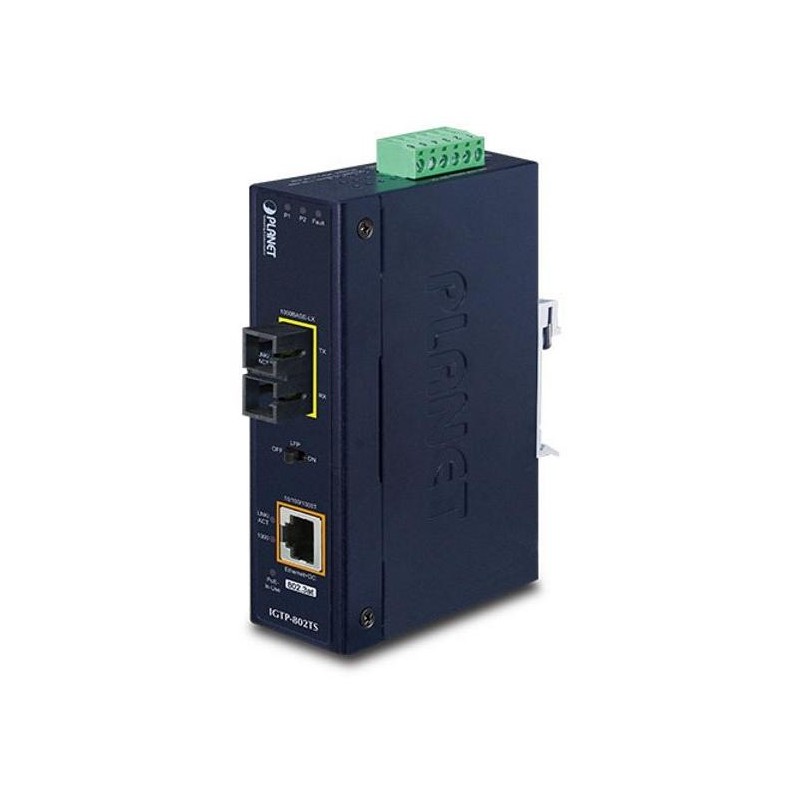

Planet IGTP-802TS RJ45/SC converter, 1Gbps, PoE injector 802.3at, -40 to 75°C, IP30, SM with SC, 12-48VDC

PLANET IGTP-802TS

The industrial converter combines 1000Base-LX to 10/100/1000Base-T Ethernet conversion with an 802.3at PoE+ injector with up to 30W for cost-effective network expansion. There is one SC port (1000Base-X, singlemode, range up to 20km) for your network needs. The converter offers a time-saving and cost-effective solution for users and system integrators to quickly transform their serial devices to Ethernet without having to replace existing serial devices and software systems.

The wide operating temperature range allows the device to be placed in almost any harsh environment. The compact metal housing with IP30 protection allows for DIN rail or wall mounting for efficient use of cabinet space. The power supply provides an integrated redundant power supply with a wide voltage range of DC 12-48 V / AC 24 V , which is ideal for operation with high-speed applications requiring dual or backup power.

BASIC SPECIFICATIONS

Physical properties:

Ports: 1x RJ-45 10/100/1000Base-T with PoE+ function, 1x SC SM (1000Base-LX, 9/125µm)

Transmission support: Frame 9KB

Design: DIN rail, wall-mounted

OAM support: no

Power supply: 12-48 V DC, or 24 V AC, max. total power consumption up to 48 W (power supply not included)

Protection: ESD up to 6 kV

Operating temperature: -40 to 75 °C

Dimensions: 135 x 87 x 32 mm

Weight: 416g

Can be installed in a chassis: no
