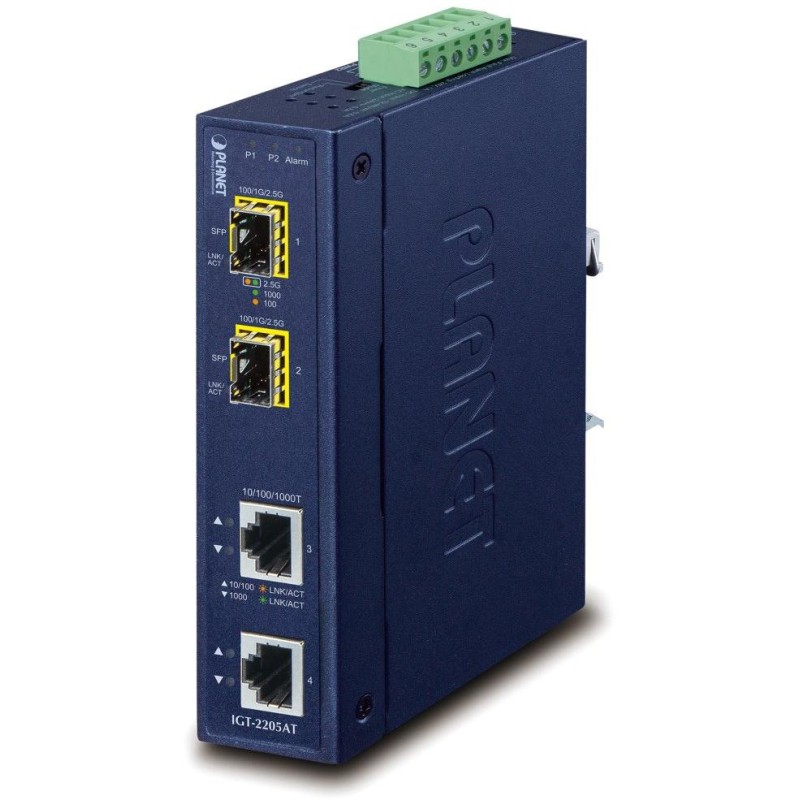

PLANET IGT-2205AT
Industrial Ethernet RJ-45 10/100/1000 Base-T to 100/1G/2.5G Base-X optical converter with SPF slots for installing optical modules (MFB and MGB series). Supports optical port redundancy (if the primary port fails, the operation automatically switches to the backup port).
Redundant power supply option in the range of DC 12-48 V or AC 24 V , IP30 protection, metal case/cover, extended operating temperature -40 to +75 °C , ESD protection up to 6 kV DC, mounting on a DIN rail or directly on the wall.
Industrial Ethernet devices are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply and frequent shocks. The converter is easily installed on a standard DIN rail or directly on the wall and allows the deployment of well-known Ethernet technology even in industrial environments. It is also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications of the FTTH type).
BASIC SPECIFICATIONS
Physical properties:
Ports: 2x RJ-45 10/100/1000 Base-T, 2x SFP 100/1G/2.5G Base-X
Transmission support: JumboFrame 9k
Design: DIN rail, wall-mounted
Power supply: DC 12-48 V or AC 24 V, connection possible from two different sources (not included), total power consumption up to 4.92 W
Protection: ESD up to 6 kV DC, reverse polarity protection
Operating temperature: -40 to +75 °C
Dimensions: 135 x 87 x 32 mm
Weight: 419g
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
