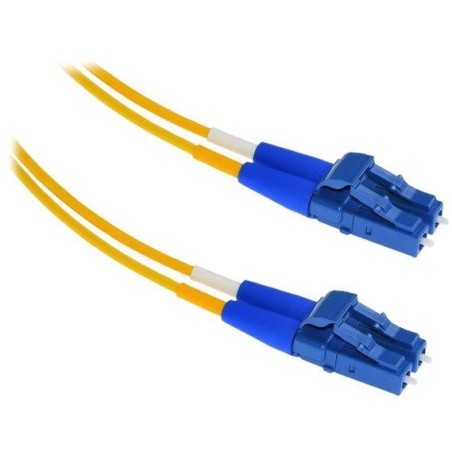

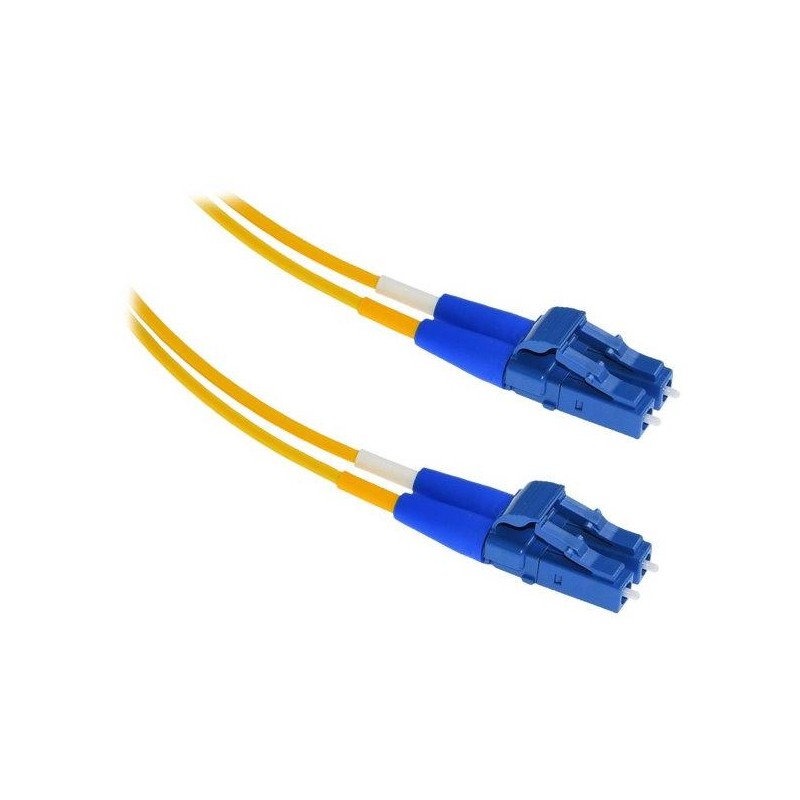

XtendLan FOP-LCLC-D-2-9-A1
Optical connection cable used for connection to a regular optical cable and for connecting individual optical modules. The ultra-flexible optical cable used allows a very small bending radius without signal attenuation. The connector has a shortened outlet cover, which saves about 2 cm of depth in a distribution board or other confined space.
BASIC SPECIFICATIONS
Fiber type: 9/125 µm, singlemode G.657.A1, fully compatible with OS1 (G.652 all types), flexible, no light attenuation occurs up to a bending radius of 15 mm and less than 1 dB at a bending radius of 7.5 mm (at 1550 nm)
Cable type: two round cables side by side, so-called zipper, width 4 mm, surface insulation type LS0H
Number of fibers in the cable (all connected): 2
Connector type on side A: LC, ground perpendicular (/UPC), insertion loss (I/L) typically 0.15 dB, max. 0.3 dB, return loss (R/L) better than 50 dB
Connector type on side B: LC, ground perpendicular (/UPC), insertion loss (I/L) typically 0.15 dB, max. 0.3 dB, return loss (R/L) better than 50 dB
Cable length: 2 m
