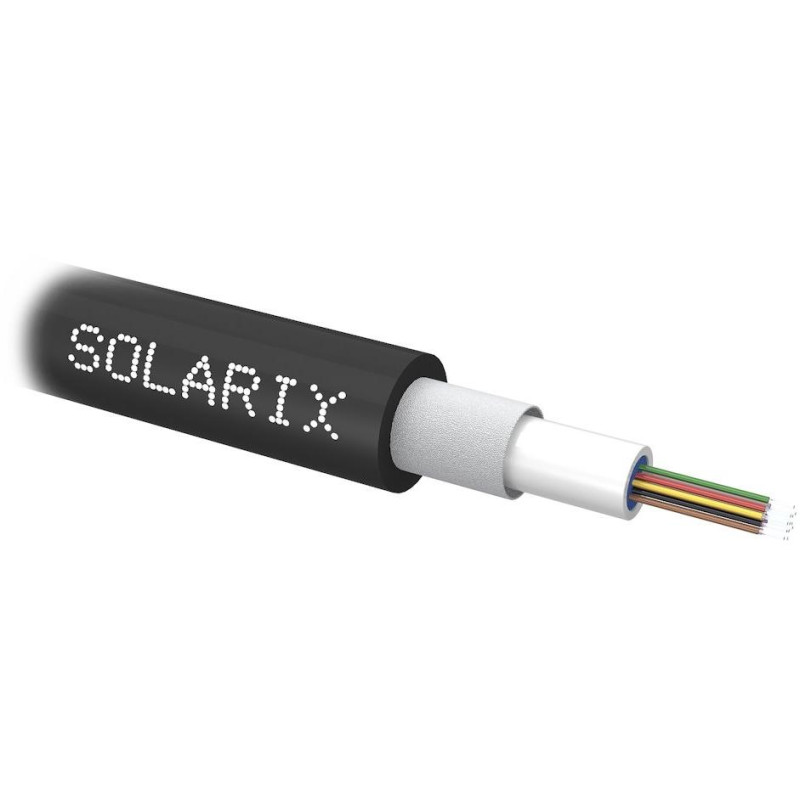

Solarix Universal cable CLT 12vl 9/125 LSOH Eca black SXKO-CLT-12-OS-LSOH

Solarix CLT 12 fibers 9/125 LSOH

Universal singlemode optical cable SXKO-CLT-12-OS-LSOH with fire reaction class E _and suitable for indoor and outdoor environments . The outer sheath of the optical cable itself is of the LSOH type, so it is low-smoke and halogen-free in the event of potential ignition. The sheath mixture is supplemented with a stable UV component . The fibers are placed in a central tube filled with gel , thanks to which they are protected from water ingress. The optical cable does not contain any metal elements and is fully dielectric. The fiber itself is of the G.652.D type.

BASIC SPECIFICATIONS

Cable type: universal, singlemode (OS)

Fiber type: 9/125 µm

Reaction to fire class, sheath type: E _ca LSOH

Cable type according to filling: gel

Type by number of tubes: CLT

Operating temperature: -20 to +60 °C

Fiber specification: G.652.D

Attenuation at 1310 nm: 0.32–0.36 dB/km

Attenuation at 1550 nm: 0.19–0.24 dB/km

Cable diameter: 5.7 mm

Cable weight: 36 kg/km

Winding length: max. 2 km

Short-term tensile strength: 1200 N

Short-term pressure resistance: 1000 N per 10 cm

Minimum bending radius (short term): 10× cable D

Minimum bending radius (long term): 20× cable D
