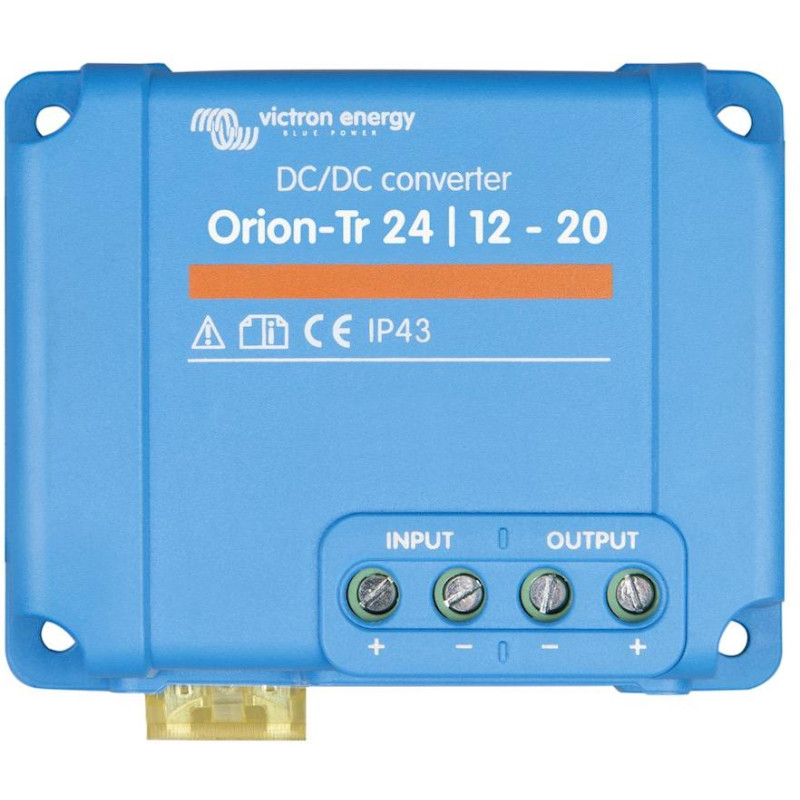

Victron Orion-Tr DC-DC charger 24/12-20A (240W) non-isolated

Highly efficient non-isolated DC-DC converter with efficiency up to 97%.

Victron Energy Orion-Tr converters are a range of low-energy DC-DC converters designed to convert 24V voltage to 12V. Thanks to the use of synchronous rectification , these converters achieve exceptional efficiency of up to 97% at full load, which means minimal heat loss and maximum energy utilization.

The converters are available in four power variants with output currents of 5 A, 10 A, 15 A and 20 A , which corresponds to powers from 60 W to 240 W. All models offer IP43 protection when installed with screw terminals facing down, ensuring reliable operation even in more demanding conditions.

BASIC SPECIFICATIONS

Input voltage: 18-35V

Output voltage: 12.5V

Efficiency: 97%

Continuous output current: 20 A

Maximum output current: 25 A

No-load current: < 35 mA

Operating temperature: -20 to +55 °C (efficiency reduction of 3% per 1 °C above 40 °C)

Connection: screw terminals

Maximum cable cross-section: 6 mm² (AWG10)

Weight: 0.25 kg

Dimensions: 94 × 73 × 45 mm

Certification: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, ECE R10-4
