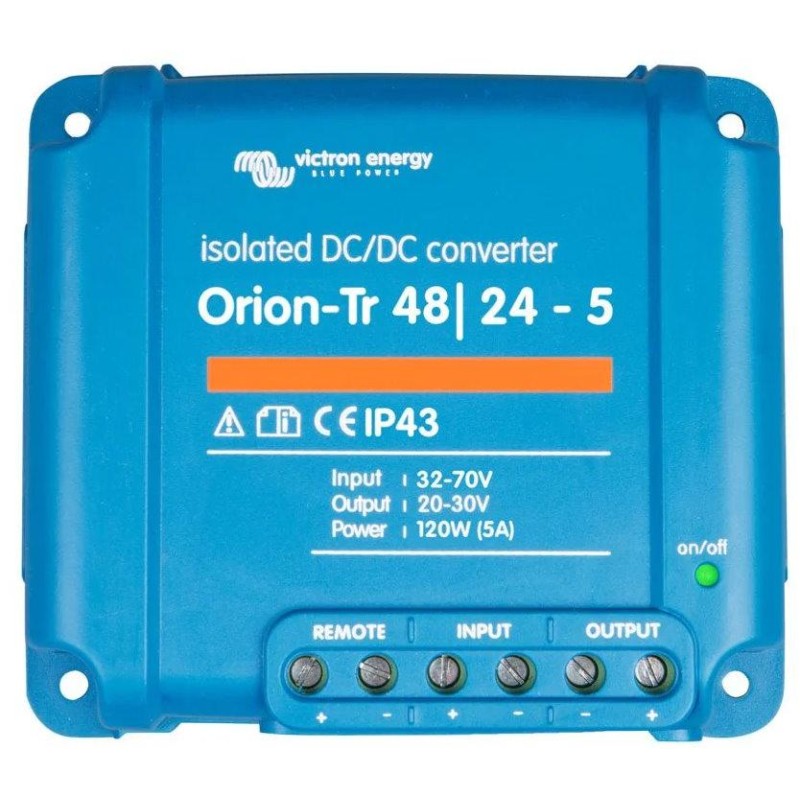

Victron Orion DC-DC converter 48/24-5A (120 W)
The professional isolated DC/DC converter Victron Orion 48/24V-5A (120 W) offers a number of unique features and easy installation.
Remote on/off control
The remote on/off terminal eliminates the need for a high-current switch in the input wiring. Remote on/off can be controlled using a low-current switch or, for example, a motor start/stop switch (see diagram below).
Parallel operation
All models are short circuit proof and can be operated in parallel to increase output power. The number of units that can be connected in parallel is unlimited.
IP43 protection
When installed with screw terminals facing down.
Protected against high temperatures
The output current will decrease at high ambient temperatures.
Quick and easy installation
Classic screw terminals are available for connecting cables, so you won't need any special tools to connect the converter.
Adjustable output voltage
Not intended for charging batteries.
Consider using the Orion-Tr Smart to charge your batteries.
BASIC SPECIFICATIONS
Input voltage: DC 32-70V
Output voltage: DC 20-30V (+/- 0.2V)
Maximum continuous output current: 5 A
Efficiency: 86%
Operating temperature range: -20 to +55 °C
Weight: 0.42 kg
Dimensions: 113 × 100 × 47 mm
