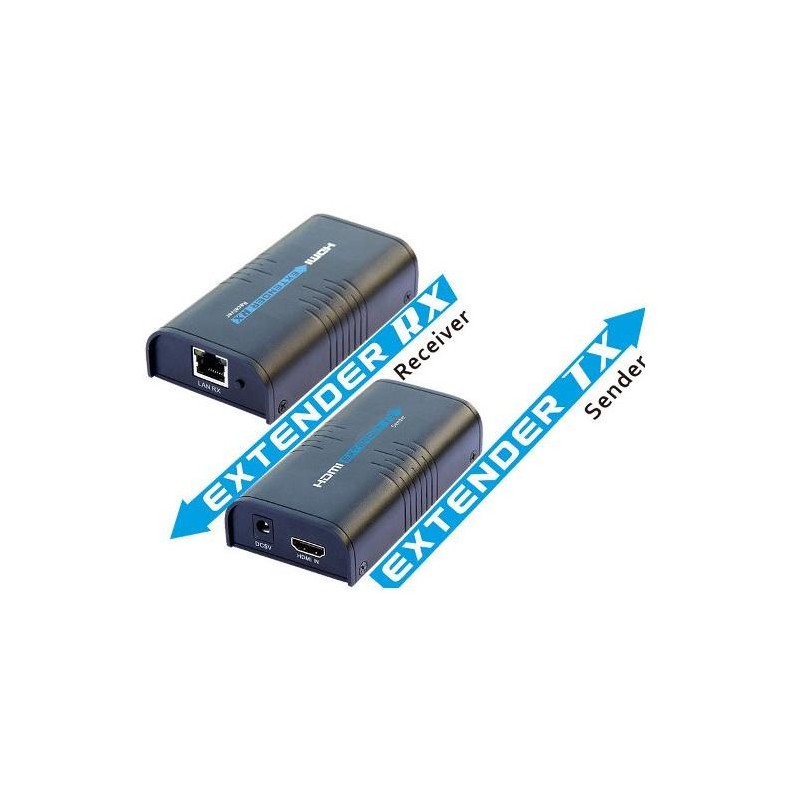

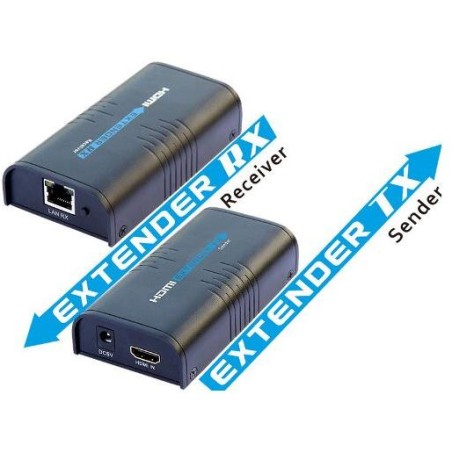

XtendLan EHDMIC11-R
HDMI transmission over LAN. Use as an HDMI extender or signal splitter. Receiving side only. HDMI is transmitted compressed, up to 100 Mbps. Intended for use as an extension of transmission from one source to many receivers. Broadcasting in UDP multicast. Unlimited range.
Device that expands the EHDMIC11-TR, EHDMIC11IR-TR, EFHDMIC10IR-TR devices with another receiver. Up to 253 receivers can be used in the network against one transmitter.
Typically suitable for digital signage applications and transmission of compressed HDMI signals. The big advantage is that it has virtually unlimited range, the only requirement is a LAN network.
The transmission is performed using UDP multicast. This allows you to purchase multiple EHDMIC11-R receivers and receive and display the same source on them.
The user does not need to configure anything, just connect the device.
The capacity of the used transmission bandwidth was approximately 85 Mbps in our tests.
BASIC SPECIFICATIONS
Features:
- HDMI compliant with HDMI 1.3b
- connection via IP network (Ethernet, UDP multicast)
- range given by the existence of a LAN network, e.g. using Ethernet converters and hubs, it can be expanded unlimitedly
- The HDMI signal is compressed to a level of up to 100 Mbit/s, it is not a lossless transmission
- LED activity/power indicator
Interface: 1× HDMI input, 1× HDMI output, 1× LAN RJ-45 10/100Base-TX
Power supply: 5 V DC, power supply included
Example of connection with multiple receivers
