XtendLan EHDMIC11-TR
HDMI transmission over LAN. Use as an HDMI extender or signal splitter. A couple of devices. HDMI is transmitted compressed, up to 100 Mbps, also transmits HDMI audio. Only one transmitter can be used for many receivers. Broadcasting in UDP multicast. Unlimited range.

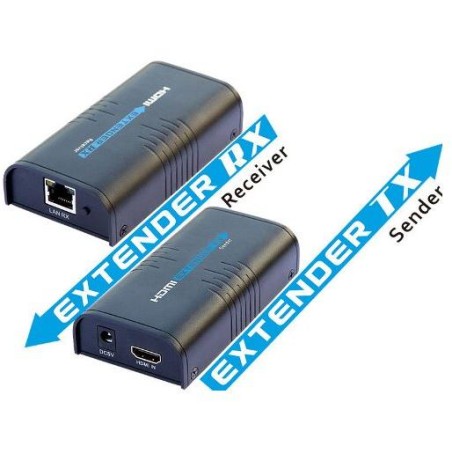

A pair of transmitter and receiver units that allow the transmission of HDMI video over Ethernet networks. Typically suitable for digital signage applications and the transmission of compressed HDMI signals. The big advantage is that it has a practically unlimited range, the only requirement is a LAN network. The transmission is carried out using UDP multicast. This allows you to purchase multiple EHDMIC11-R receiving sides and receive and display the same source on them. The number of possible receivers in the network is up to 253. The delay between the source and the receiver is in the order of ms, it is imperceptible to the naked eye.
The user does not have to configure anything, just plug in the device. The capacity of the used transmission bandwidth was approx. 85 Mbps in our tests.
BASIC SPECIFICATIONS
Features:
- HDMI input, compatible with HDMI 1.3b
- connection via IP network (Ethernet, UDP multicast)
- range given by the existence of a LAN network, e.g. using Ethernet converters and hubs, it can be expanded unlimitedly
- The HDMI signal is compressed to a level of up to 100 Mbit/s, it is not a lossless transmission
- LED activity/power indicator
Sending party:
LAN, 10/100 Mbps, RJ-45, 10/100Base-TX
HDMI input
5 V DC power supply, component power supply
Receiving party:
LAN, 10/100 Mbps, RJ-45, 10/100Base-TX
HDMI output
5 V DC power supply, component power supply
Connectors: 2 x RJ-45 for extension, 1 x HDMI input, 1 x HDMI output
Manual
Other downloads
Example of connection with multiple receivers
