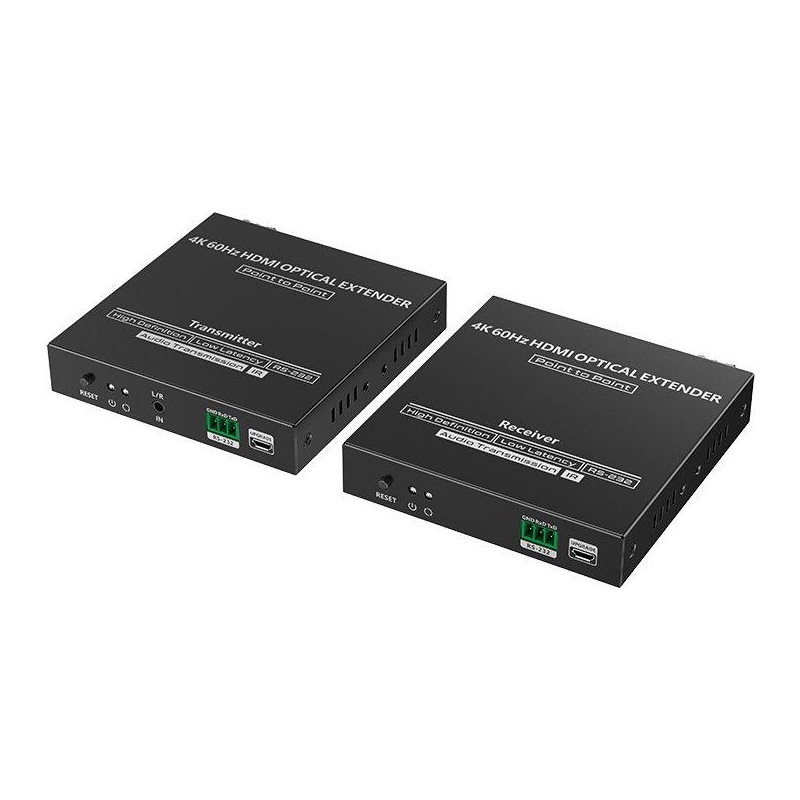

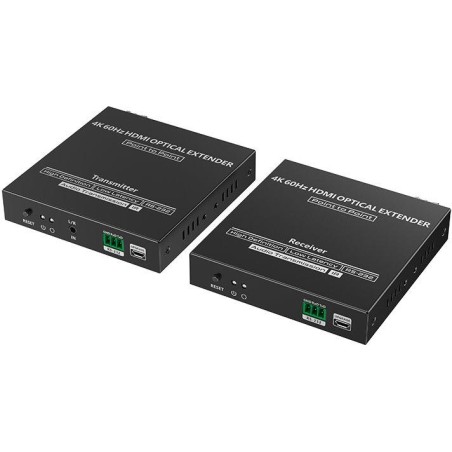

XtendLan EHDMIF11CIR4k-TR
4K HDMI optical extender kit, consisting of a transmitter and receiver, uses ipcolor STREAM technology for high-definition, low-latency transmission. HDMI signal in 4K resolution at 60 Hz can be extended up to 40 km using single-mode LC optical cable , which supports one-to-one connection or cascade connection of a gigabit switch. It also supports HDMI loop out, IR passback and RS-232 pass-through functions.
- uses ipcolor STREAM technology
- support HDMI 2.0, HDCP 1.4/HDCP 2.2, LPCM 2.0, PCM
- 4K transmission at 60 Hz over a distance of 40 km
- HDMI loop-out support, IR passback, RS-232 pass-through
- ESD protection, 4 kV contact, 8 kV air, IEC61000-4-2, lightning protection, surge protection
BASIC SPECIFICATIONS
Supported resolution: up to 4K
Transmission technology: using LC single-mode optical cable
Maximum transmission distance: up to 40 km
Transmitting side (Tx)
Connectors: 1× HDMI input, 1× HDMI output (loop-out), 1× SFP output, 1× RS-232, 1× 3.5 mm jack input, 1× IR output, 1× microUSB (for updates)
Power supply: 5V/2A, max. 7.5W
Working temperature: -10 to 50 °C, humidity max. 90%
Dimensions: 106 × 103 × 20.6 mm
Weight: 290g
Color: black
Receiving side (Rx)
Connectors: 1× HDMI output, 1× SFP input, 1× RS-232, 1× 3.5 mm jack output, 1× IR input, 1× microUSB (for updates)
Power supply: 5V/2A, max. 7.5W
Working temperature: -10 to 50 °C, humidity max. 90%
Dimensions: 106 × 103 × 20.6 mm
Weight: 286g
Color: black
