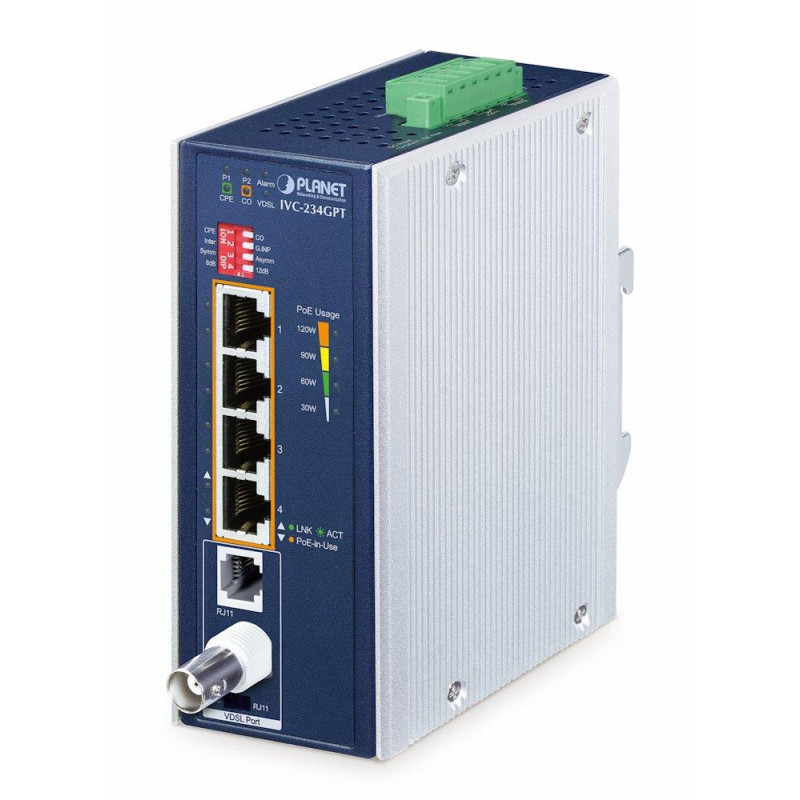

PLANET IVC-234GPT
Industrial Ethernet extender (converter) for converting/modulating RJ-45 network to coaxial or 2-wire UTP cable. Allows you to extend the network range up to 1.4 km at a speed of 200 Mbps . It has one BNC port, one RJ-11 port and 4 gigabit RJ-45 ports (10/100/1000 Base-T) with PoE+ 802.3at power support, DC 12-54 V power supply, redundant power supply option.
Ideal for connecting remote IP cameras, access points or digital displays.
It is suitable for use with IP cameras, digital signage displays, NVRs and other network elements that require connections over a distance of more than 100 meters (up to 1.4 km).
The device uses Gigabit Ethernet and VDSL2 technology with the option of choosing between asymmetric mode (downstream up to 300 Mbps / upstream up to 100 Mbps) or symmetric mode (downstream and upstream up to 200 Mbps) for data transmission.
The industrial design in a metal IP30 housing with DIN rail mounting, operating temperature -40 to +75 °C, 6kV ESD protection and support for redundant power supply 12–54 V DC make it ideal for demanding environments.
BASIC SPECIFICATIONS
Physical properties:
Ports: 4x RJ-45 10/100/1000 Base-T, 1x RJ-11 (VDSL2/ADSL2+), 1x BNC (F)
Design: DIN rail, wall-mounted
Power supply: possible direct dual power supply 2× DC 12-54 V, total power consumption up to 122 W (power supply not included)
Protection: 6 kV DC (ESD)
Operating temperature: -40 to +75 °C
Dimensions: 135 × 86.1 × 56 mm
Weight: 736g
Connector/Extender Specifications:
Maximum transmission distance via coaxial cable: 1.4 km
Maximum transmission distance using VDSL2 + RJ-11 port: 1.4 km
DIP switch and function:
- DIP-1: CO or CPE mode
- DIP-2: G.INP or Interleaved mode
- DIP-3: band profile (asymmetric or symmetric)
- DIP-4: SNR 12 dB or 8 dB
POE function:
Total power output: IEEE 802.3at PoE+
Number of injectors: 4× up to 30 W, PoE Budget 120 W
Power supply type: End-span
System specifications:
VDSL:
- VDSL-DMT
- ITU-T G.993.1 VDSL
- ITU-T G.997.1
- ITU-T G.993.2 VDSL2 (Profile 17a/30a/35b support)
- ITU-T G.993.5 G.vectoring
- ITU-T G.998
- G.INP
ADSL:
- ADSL2/2+ standard
- ITU G.992.3 G.dmt.bis
- ITU G.992.5 G.dmt.bisplus
- Data transfer rate up to 24 Mbps
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g (IEC-60068-2-27)
Usage examples:
