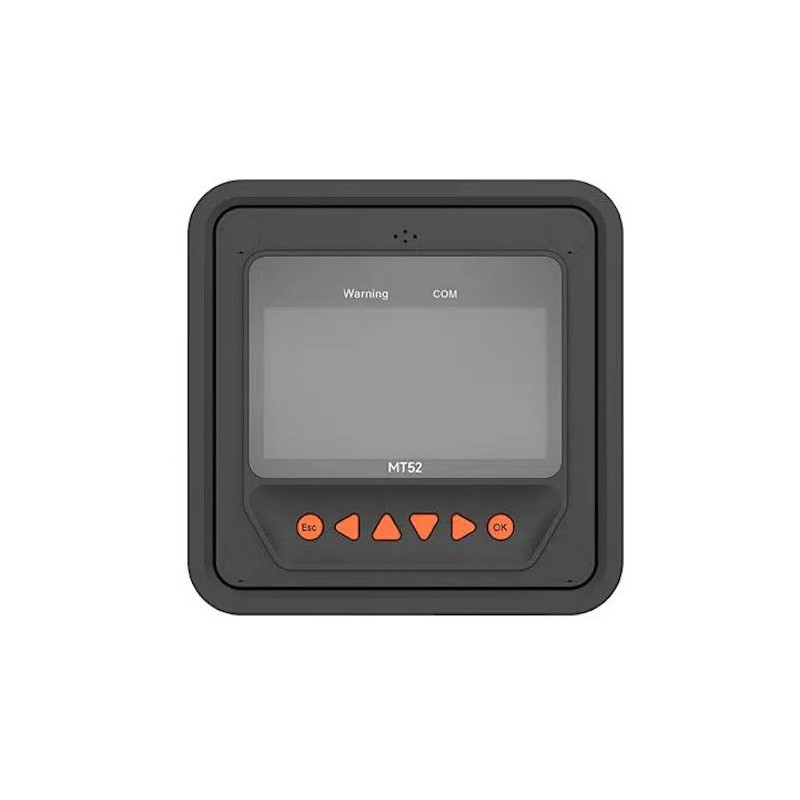

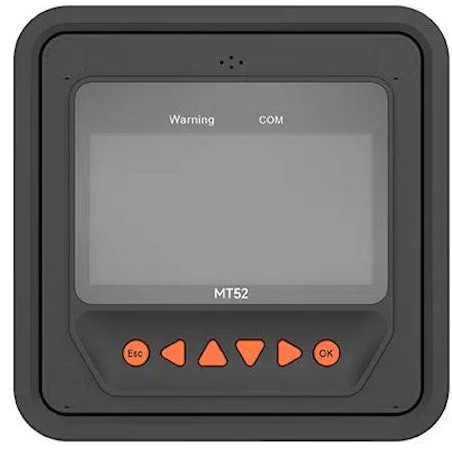

EPEVER MT52 external display for solar MPPT controller Tracer, XTRA and XTRA-N G3 BLE

EPEVER MT52

External display for Tracer, XTRA and XTRA-N G3 BLE series solar MPPT controllers. Allows monitoring and setting of the controller.

This product is required for full control of the solar controller.

It is designed for remote management and display of current, voltage and controller status values. The display is designed for wall mounting and allows continuous monitoring of your solar system from the comfort of your living room.

Features:

•

• Automatic controller identification

• Large multifunction display

• 6 navigation buttons

• Real-time statistics

• Power supply directly from the control unit

• Real-time monitoring and acoustic alarm of controller failure information

• RJ-45 communication interface


The display is supplied with mounting accessories and cable.

BASIC SPECIFICATIONS

Display: LCD, backlit, monochrome

Interface: RS-485 (RJ-45 connector)

Supply voltage: DC 5-12 V (via communication port)

Self-consumption: 15 mA (without backlight), 23 mA (with backlight)

Operating temperature: –20°C to +70°C

Dimensions: 114 × 114 × 48.2 mm (mounting dimension 84 × 84 mm)

Weight: 230g
